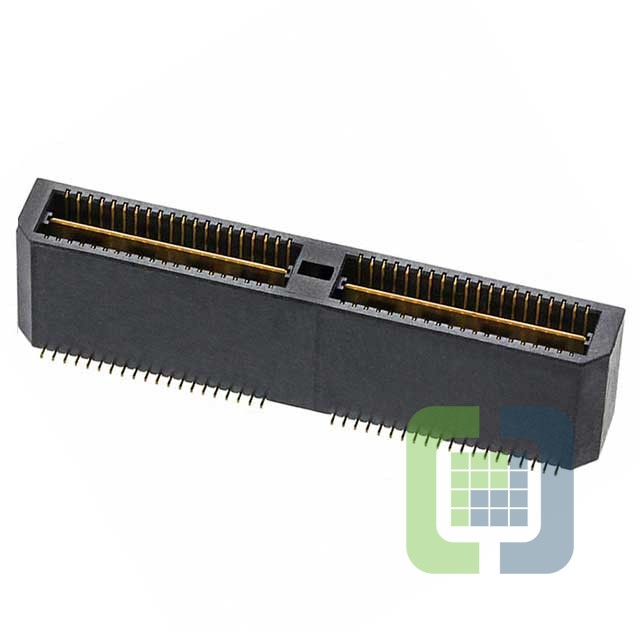

1658015-2
TE Connectivity AMP Connectors
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN PLUG 80POS SMD GOLD
- CategoryRectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
- Datasheet 1658015-2 Datasheet
-
ECAD Model
- Share
In Stock: 333
Can ship immediately
Pricing:
- 1$12.52
- 10$11.47204
- 25$11.21072
- 65$10.42834
- 130$9.90694
- 260$9.12484
- 520$8.60343
- 1,040$7.97773
Quote It
Technical Details
- Series:MICTOR
- Package:Tray
- Part Status:Active
- Connector Type:Plug, Outer Shroud Contacts
- Number of Positions:80
- Pitch:0.031" (0.80mm)
- Number of Rows:2
- Mounting Type:Surface Mount
- Features:Board Guide, Ground Bus (Plane)
- Contact Finish:Gold
- Contact Finish Thickness:10.0µin (0.25µm)
- Mated Stacking Heights:11mm
- Height Above Board:0.404" (10.27mm)
