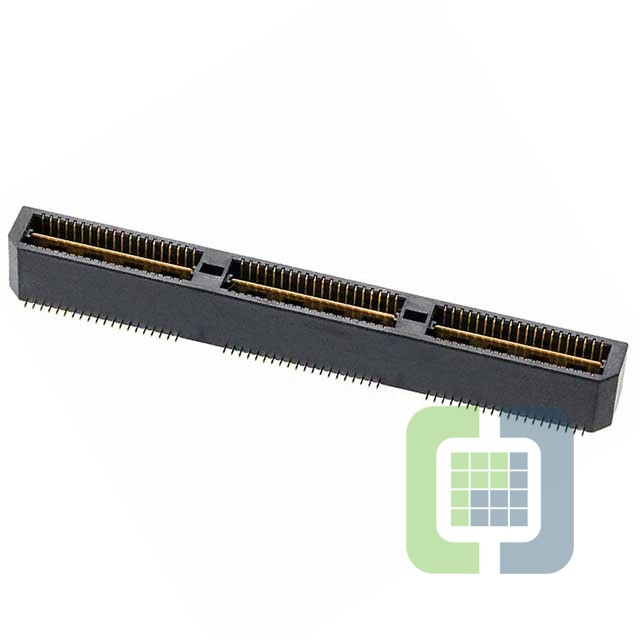

1658014-3
TE Connectivity AMP Connectors
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN PLUG 120POS SMD GOLD
- CategoryRectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
- Datasheet 1658014-3 Datasheet
-
ECAD Model
- Share
In Stock: 301
Can ship immediately
Pricing:
- 1$14.9
- 10$13.65051
- 42$13.34019
- 84$12.40959
- 126$11.78904
- 252$10.85833
- 504$10.23785
- 1,008$9.49328
Quote It
Technical Details
- Series:MICTOR
- Package:Tray
- Part Status:Active
- Connector Type:Plug, Outer Shroud Contacts
- Number of Positions:120
- Pitch:0.031" (0.80mm)
- Number of Rows:2
- Mounting Type:Surface Mount
- Features:Board Guide, Ground Bus (Plane)
- Contact Finish:Gold
- Contact Finish Thickness:10.0µin (0.25µm)
- Mated Stacking Heights:8mm
- Height Above Board:0.278" (7.06mm)
