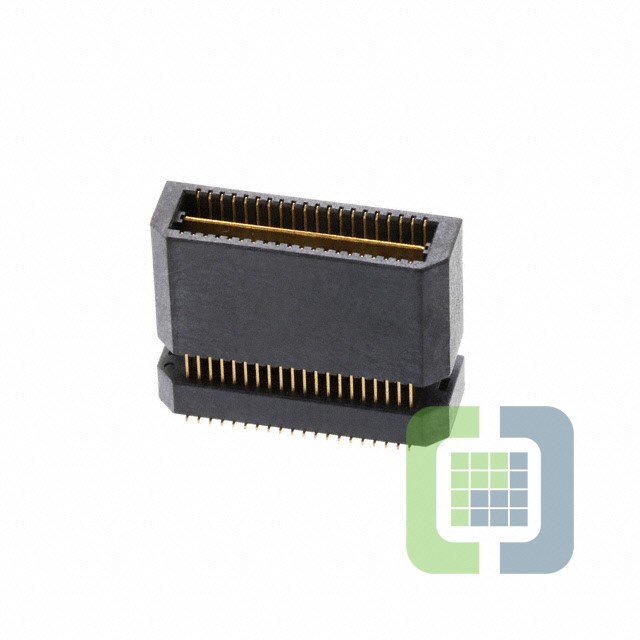

1658016-1
TE Connectivity AMP Connectors
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN PLUG 40POS SMD GOLD
- CategoryRectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
- Datasheet 1658016-1 Datasheet
-
ECAD Model
- Share
In Stock: 581
Can ship immediately
Pricing:
- 1$18.68
- 10$17.46618
- 40$15.84171
- 80$15.43559
- 120$13.81071
- 280$12.99834
- 520$12.75462
Quote It
Technical Details
- Series:MICTOR
- Package:Tray
- Part Status:Active
- Connector Type:Plug, Outer Shroud Contacts
- Number of Positions:40
- Pitch:0.031" (0.80mm)
- Number of Rows:2
- Mounting Type:Surface Mount
- Features:Board Guide, Ground Bus (Plane)
- Contact Finish:Gold
- Contact Finish Thickness:10.0µin (0.25µm)
- Mated Stacking Heights:16mm
- Height Above Board:0.600" (15.24mm)
