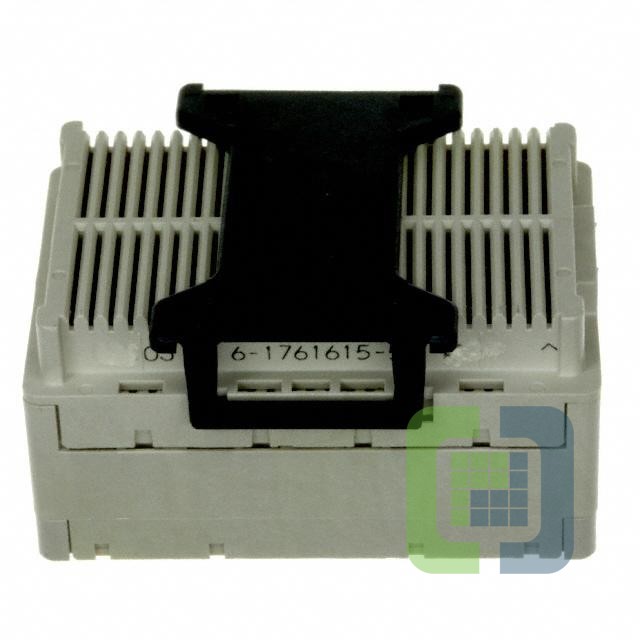

6-1761615-5
TE Connectivity AMP Connectors
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN DIFF ARRAY RCPT 200POS SMD
- CategoryRectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
- Datasheet 6-1761615-5 Datasheet
-
ECAD Model
- Share
In Stock: 298
Can ship immediately
Pricing:
- 1$41.1
- 10$37.10083
- 25$35.54569
- 50$33.32393
- 100$32.21316
- 250$30.43587
Quote It
Technical Details
- Series:STEP-Z
- Package:Tray
- Part Status:Active
- Connector Type:Differential Pair Array, Female
- Number of Positions:200 Signal (100 Pair)
- Pitch:0.051" (1.30mm)
- Number of Rows:18
- Mounting Type:Surface Mount
- Features:-
- Contact Finish:Gold
- Contact Finish Thickness:30.0µin (0.76µm)
- Mated Stacking Heights:25mm, 27mm, 28mm, 30mm, 35mm, 40mm
- Height Above Board:0.813" (20.64mm)
