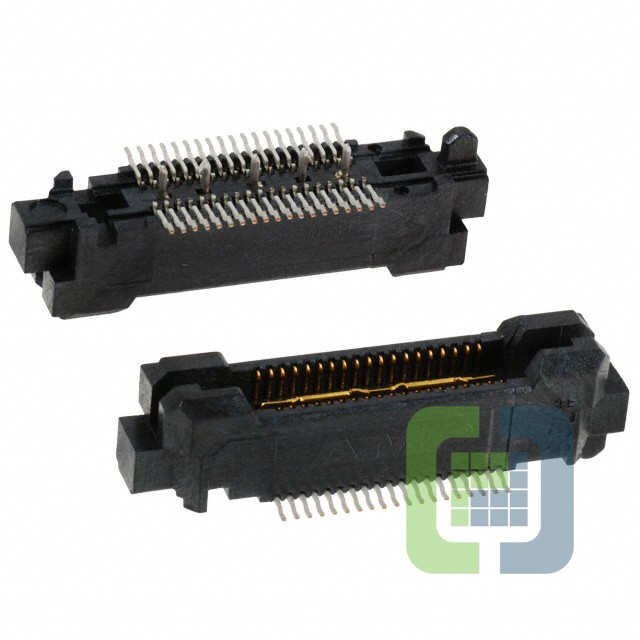

5767007-8
TE Connectivity AMP Connectors
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN PLUG 38POS SMD GOLD
- CategoryRectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
- Datasheet 5767007-8 Datasheet
-
ECAD Model
- Share
In Stock: 1,054
Can ship immediately
Pricing:
- 1$16.65
- 21$15.45698
- 42$13.87176
- 63$13.47542
- 105$11.89017
- 252$11.09747
- 504$10.85967
- 1,008$10.3048
Quote It
Technical Details
- Series:MICTOR
- Package:Tube
- Part Status:Active
- Connector Type:Plug, Outer Shroud Contacts
- Number of Positions:38
- Pitch:0.025" (0.64mm)
- Number of Rows:2
- Mounting Type:Surface Mount
- Features:Board Guide, Ground Bus (Plane)
- Contact Finish:Gold
- Contact Finish Thickness:30.0µin (0.76µm)
- Mated Stacking Heights:6.6mm, 15.62mm
- Height Above Board:0.251" (6.38mm)
