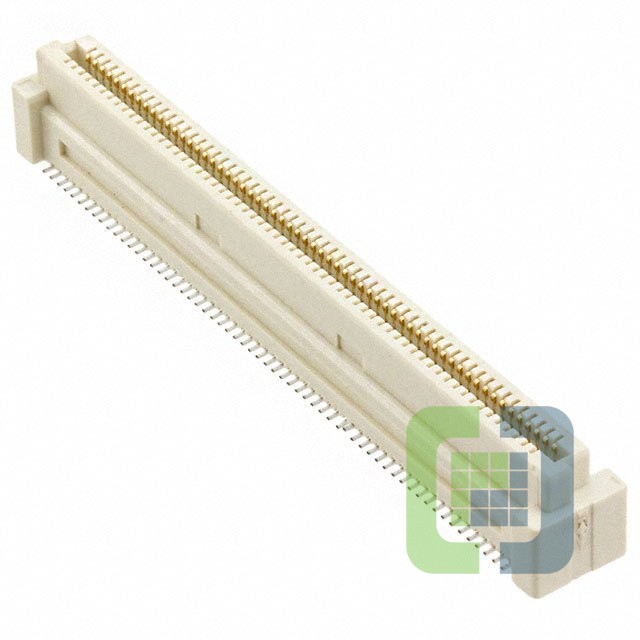

5-5179009-5
TE Connectivity AMP Connectors
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN RCPT 120POS SMD GOLD
- CategoryRectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
- Datasheet 5-5179009-5 Datasheet
-
ECAD Model
- Share
In Stock: 120
Can ship immediately
Pricing:
- 1$7.51
- 18$7.21617
- 27$6.63906
- 54$6.35019
- 108$6.06156
- 252$5.48431
- 504$5.19564
- 1,008$4.61835
Quote It
Technical Details
- Series:Free Height (FH)
- Package:Tube
- Part Status:Active
- Connector Type:Receptacle, Outer Shroud Contacts
- Number of Positions:120
- Pitch:0.031" (0.80mm)
- Number of Rows:2
- Mounting Type:Surface Mount
- Features:Board Guide
- Contact Finish:Gold
- Contact Finish Thickness:8.00µin (0.203µm)
- Mated Stacking Heights:9mm, 10mm, 11mm, 12mm
- Height Above Board:0.305" (7.75mm)
