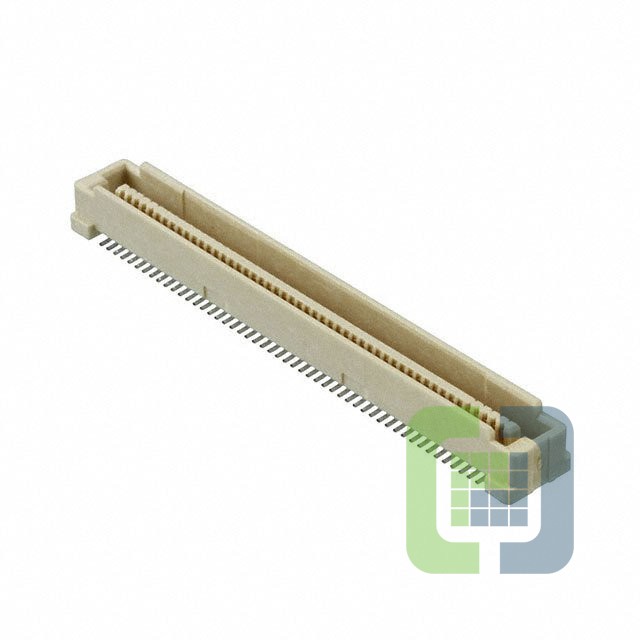

5084614-4
TE Connectivity AMP Connectors
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN PLUG 100POS SMD GOLD
- CategoryRectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
- Datasheet 5084614-4 Datasheet
-
ECAD Model
- Share
In Stock: 115
Can ship immediately
Pricing:
- 1$7.76
- 10$7.46338
- 100$6.26924
- 500$5.37363
- 1,000$4.77656
Quote It
Technical Details
- Series:Free Height (FH)
- Package:Tube
- Part Status:Active
- Connector Type:Plug, Center Strip Contacts
- Number of Positions:100
- Pitch:0.031" (0.80mm)
- Number of Rows:2
- Mounting Type:Surface Mount
- Features:Board Guide
- Contact Finish:Gold
- Contact Finish Thickness:30.0µin (0.76µm)
- Mated Stacking Heights:5mm
- Height Above Board:0.181" (4.60mm)
