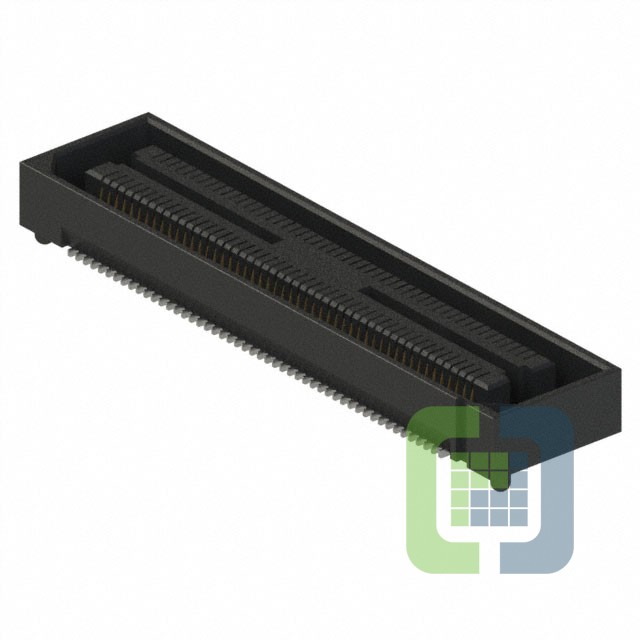

BSH-050-01-L-D-A-TR
Samtec, Inc.
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN SOCKET 100POS SMD GOLD
- CategoryRectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
- Datasheet BSH-050-01-L-D-A-TR Datasheet
-
ECAD Model
- Share
In Stock: 315
Can ship immediately
Pricing:
- 1$8.11
- 500$4.563
- 1,000$4.3095
- 1,500$4.225
Quote It
Technical Details
- Series:BSH
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Connector Type:Socket, Center Strip Contacts
- Number of Positions:100
- Pitch:0.020" (0.50mm)
- Number of Rows:2
- Mounting Type:Surface Mount
- Features:Board Guide
- Contact Finish:Gold
- Contact Finish Thickness:10.0µin (0.25µm)
- Mated Stacking Heights:5mm
- Height Above Board:0.128" (3.25mm)
