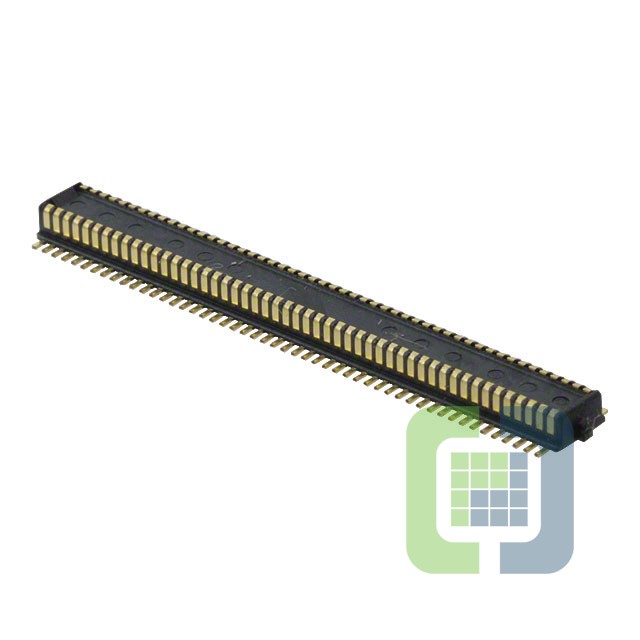

IL-312-A100P-VF-A1
JAE Electronics
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN PLUG 100POS SMD GOLD
- CategoryRectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
- Datasheet IL-312-A100P-VF-A1 Datasheet
-
ECAD Model
- Share
In Stock: 2,031
Can ship immediately
Pricing:
- 1$8.28
- 10$7.935
- 25$7.2452
- 50$6.9
- 100$6.555
- 300$5.865
- 500$5.52
- 1,000$4.83
Quote It
Technical Details
- Series:IL-312
- Package:Tray
- Part Status:Obsolete
- Connector Type:Plug, Center Strip Contacts
- Number of Positions:100
- Pitch:0.020" (0.50mm)
- Number of Rows:2
- Mounting Type:Surface Mount
- Features:Solder Retention
- Contact Finish:Gold
- Contact Finish Thickness:3.94µin (0.10µm)
- Mated Stacking Heights:2.5mm, 3mm
- Height Above Board:0.061" (1.55mm)
