0525840879
Woodhead - Molex
- Lifecycle status Active
- RoHS RoHS Compliant

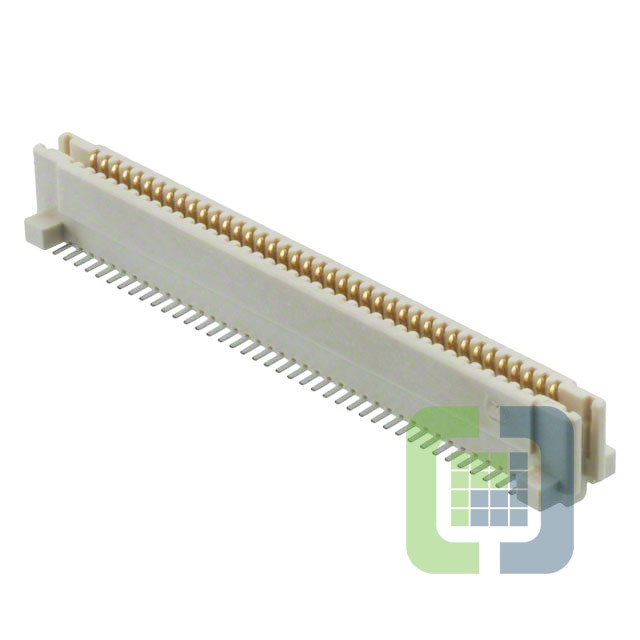

- DescriptionCONN RCPT 80POS SMD GOLD
- CategoryRectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
- Datasheet 0525840879 Datasheet
-
ECAD Model
- Share
In Stock: 419
Can ship immediately
Pricing:
- 1$8.54
- 10$8.165
- 25$7.4228
- 50$7.0514
- 100$6.8659
- 250$6.12364
- 500$5.75252
- 1,000$5.08448
Quote It
Technical Details
- Series:SlimStack 52584
- Package:Tube
- Part Status:Obsolete
- Connector Type:Receptacle, Outer Shroud Contacts
- Number of Positions:80
- Pitch:0.039" (1.00mm)
- Number of Rows:2
- Mounting Type:Surface Mount
- Features:Board Guide
- Contact Finish:Gold
- Contact Finish Thickness:10.0µin (0.25µm)
- Mated Stacking Heights:8mm, 9mm, 10mm, 18mm
- Height Above Board:0.224" (5.70mm)
