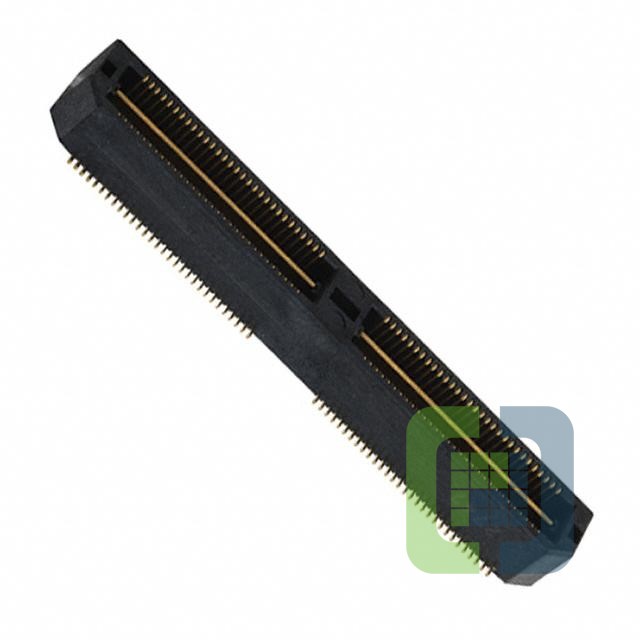

QTH-060-01-F-D-A-TR
Samtec, Inc.
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN HDR 120POS SMD GOLD
- CategoryRectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
-
ECAD Model
- Share
In Stock: 245
Can ship immediately
Pricing:
- 1$8.95008
- 125$8.87534
Quote It
Technical Details
- Series:Q Strip® QTH
- Package:Tape & Reel (TR)
- Part Status:Active
- Connector Type:Header, Outer Shroud Contacts
- Number of Positions:120
- Pitch:0.020" (0.50mm)
- Number of Rows:2
- Mounting Type:Surface Mount
- Features:Board Guide, Ground Bus (Plane)
- Contact Finish:Gold
- Contact Finish Thickness:3.00µin (0.076µm)
- Mated Stacking Heights:5mm
- Height Above Board:0.160" (4.06mm)
