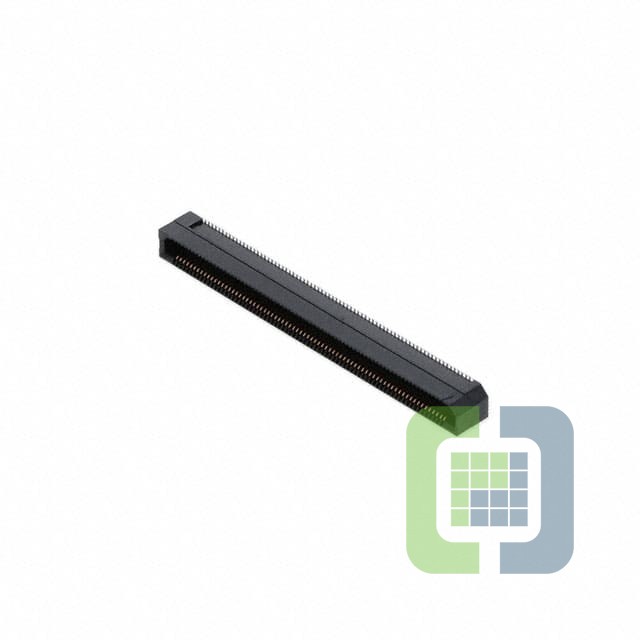

ERF8-075-07.0-L-DV-K-TR
Samtec, Inc.
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN SOCKET 150POS SMD GOLD
- CategoryRectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
- Datasheet ERF8-075-07.0-L-DV-K-TR Datasheet
-
ECAD Model
- Share
In Stock: 310
Can ship immediately
Pricing:
- 1$9.68
- 300$6.9465
- 600$6.5255
- 900$6.1045
- 1,500$5.5993
Quote It
Technical Details
- Series:Edge Rate™ ERF8
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Connector Type:Socket, Outer Shroud Contacts
- Number of Positions:150
- Pitch:0.031" (0.80mm)
- Number of Rows:2
- Mounting Type:Surface Mount
- Features:Board Guide, Pick and Place
- Contact Finish:Gold
- Contact Finish Thickness:10.0µin (0.25µm)
- Mated Stacking Heights:9mm, 12mm, 15mm, 16mm, 22mm
- Height Above Board:0.285" (7.24mm)
