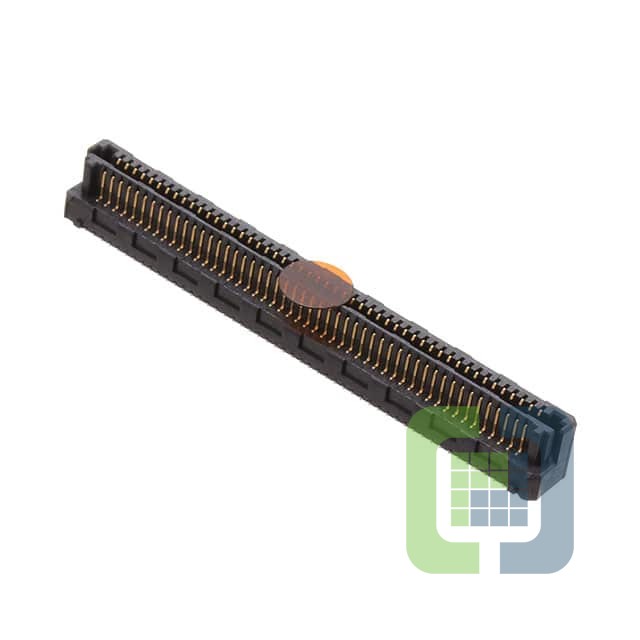

LSEM-150-04.0-L-DV-A-N-K-TR
Samtec, Inc.
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN SELF-MATE 100POS SMD GOLD
- CategoryRectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
- Datasheet LSEM-150-04.0-L-DV-A-N-K-TR Datasheet
-
ECAD Model
- Share
In Stock: 359
Can ship immediately
Pricing:
- 1$9.75
- 525$5.512
- 1,050$5.3
- 1,575$5.194
Quote It
Technical Details
- Series:Razor Beam™ LSEM
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Connector Type:Self Mating, Non-Gendered
- Number of Positions:100
- Pitch:0.031" (0.80mm)
- Number of Rows:2
- Mounting Type:Surface Mount
- Features:Pick and Place
- Contact Finish:Gold
- Contact Finish Thickness:10.0µin (0.25µm)
- Mated Stacking Heights:7mm, 8mm, 10mm
- Height Above Board:0.215" (5.46mm)
