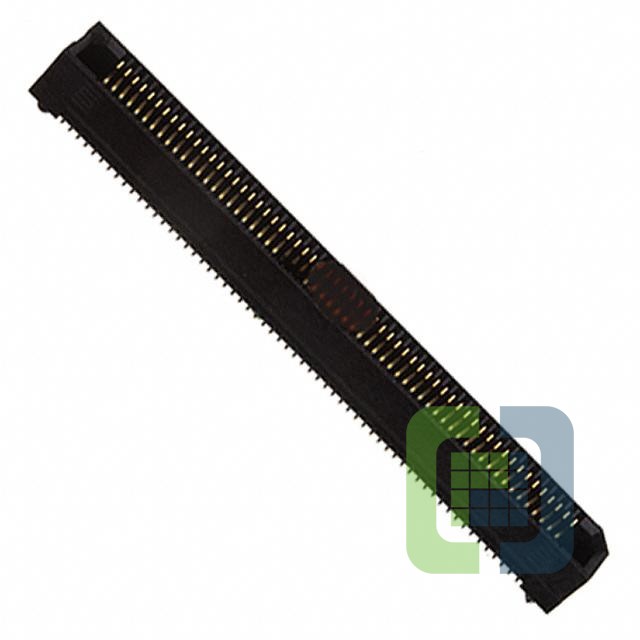

ERF8-060-05.0-S-DV-K-TR
Samtec, Inc.
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN SOCKET 120POS SMD GOLD
- CategoryRectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
- Datasheet ERF8-060-05.0-S-DV-K-TR Datasheet
-
ECAD Model
- Share
In Stock: 377
Can ship immediately
Pricing:
- 1$10.03
- 375$7.194
- 750$6.322
- 1,125$5.9732
Quote It
Technical Details
- Series:Edge Rate™ ERF8
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Connector Type:Socket, Outer Shroud Contacts
- Number of Positions:120
- Pitch:0.031" (0.80mm)
- Number of Rows:2
- Mounting Type:Surface Mount
- Features:Board Guide, Pick and Place
- Contact Finish:Gold
- Contact Finish Thickness:30.0µin (0.76µm)
- Mated Stacking Heights:7mm, 10mm, 13mm, 14mm, 20mm
- Height Above Board:0.210" (5.33mm)
