AXT300224
Panasonic
- Lifecycle status Active
- RoHS RoHS Compliant

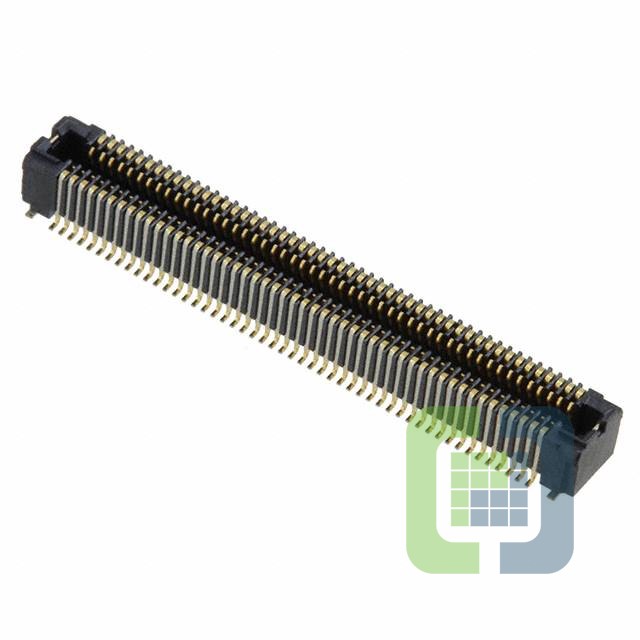

- DescriptionCONN SOCKET 100POS SMD GOLD
- CategoryRectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
- Datasheet AXT300224 Datasheet
-
ECAD Model
- Share
In Stock: 642
Can ship immediately
Pricing:
- 1$10.24
- 3,000$5.785
Quote It
Technical Details
- Series:P4S
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Connector Type:Socket, Outer Shroud Contacts
- Number of Positions:100
- Pitch:0.016" (0.40mm)
- Number of Rows:2
- Mounting Type:Surface Mount
- Features:Solder Retention
- Contact Finish:Gold
- Contact Finish Thickness:-
- Mated Stacking Heights:2.5mm, 3mm
- Height Above Board:0.096" (2.45mm)
