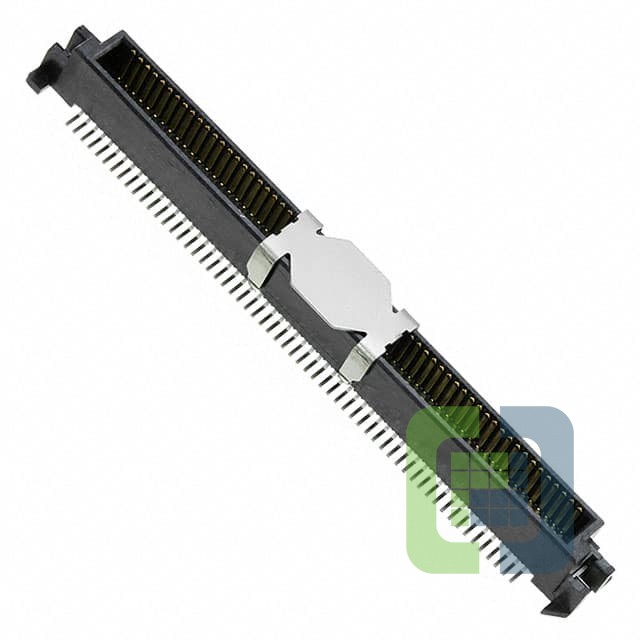

0550911274
Woodhead - Molex
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN PLUG 120POS SMD GOLD
- CategoryRectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
- Datasheet 0550911274 Datasheet
-
ECAD Model
- Share
In Stock: 312
Can ship immediately
Pricing:
- 1$12.76
- 250$9.28064
- 500$8.68188
- 750$8.20288
- 1,250$7.96338
Quote It
Technical Details
- Series:SlimStack 55091
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Connector Type:Plug, Outer Shroud Contacts
- Number of Positions:120
- Pitch:0.025" (0.64mm)
- Number of Rows:2
- Mounting Type:Surface Mount
- Features:Board Guide, Solder Retention
- Contact Finish:Gold
- Contact Finish Thickness:10.0µin (0.25µm)
- Mated Stacking Heights:6mm, 12mm
- Height Above Board:0.197" (5.00mm)
