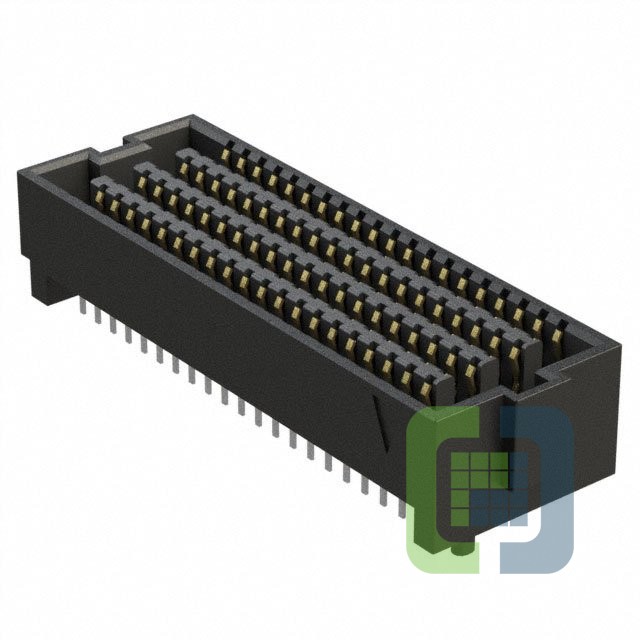

SEAF-20-06.5-L-08-2-A-K-TR
Samtec, Inc.
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN HD ARRAY RCPT 160P SMD GOLD
- CategoryRectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
- Datasheet SEAF-20-06.5-L-08-2-A-K-TR Datasheet
-
ECAD Model
- Share
In Stock: 312
Can ship immediately
Pricing:
- 1$16.38
- 200$10.14
- 400$9.945
- 600$9.75
- 1,000$9.36
Quote It
Technical Details
- Series:SEARAY™ SEAF
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Connector Type:High Density Array, Female
- Number of Positions:160
- Pitch:0.050" (1.27mm)
- Number of Rows:8
- Mounting Type:Surface Mount
- Features:Board Guide, Pick and Place
- Contact Finish:Gold
- Contact Finish Thickness:10.0µin (0.25µm)
- Mated Stacking Heights:8.5mm, 9.5mm, 10mm, 13mm, 13.5mm, 15.5mm, 17.5mm, 19.5mm
- Height Above Board:0.258" (6.55mm)
