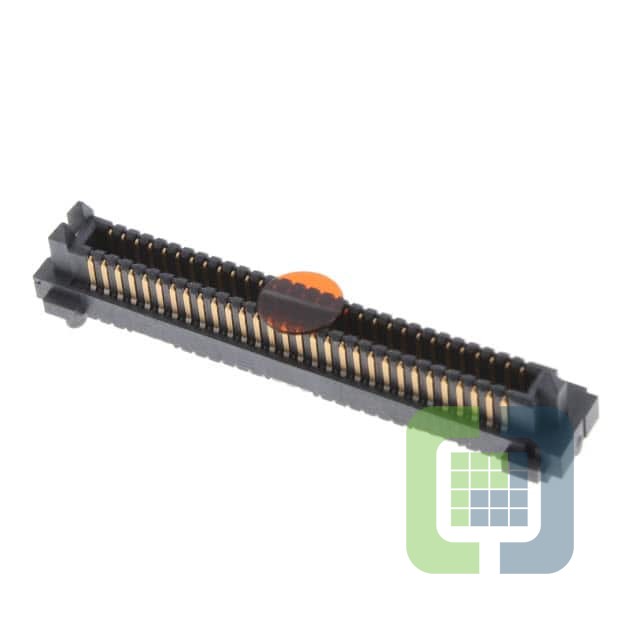

SEAM8-30-S02.0-S-04-2-K
Samtec, Inc.
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN HD ARRAY PLUG 120P SMD GOLD
- CategoryRectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
- Datasheet SEAM8-30-S02.0-S-04-2-K Datasheet
-
ECAD Model
- Share
In Stock: 279
Can ship immediately
Pricing:
- 1$18
- 475$10.92676
- 950$10.49825
Quote It
Technical Details
- Series:SEARAY™ SEAM
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Obsolete
- Connector Type:High Density Array, Male
- Number of Positions:120
- Pitch:0.031" (0.80mm)
- Number of Rows:4
- Mounting Type:Surface Mount
- Features:Board Guide, Pick and Place
- Contact Finish:Gold
- Contact Finish Thickness:30.0µin (0.76µm)
- Mated Stacking Heights:7mm
- Height Above Board:0.179" (4.55mm)
