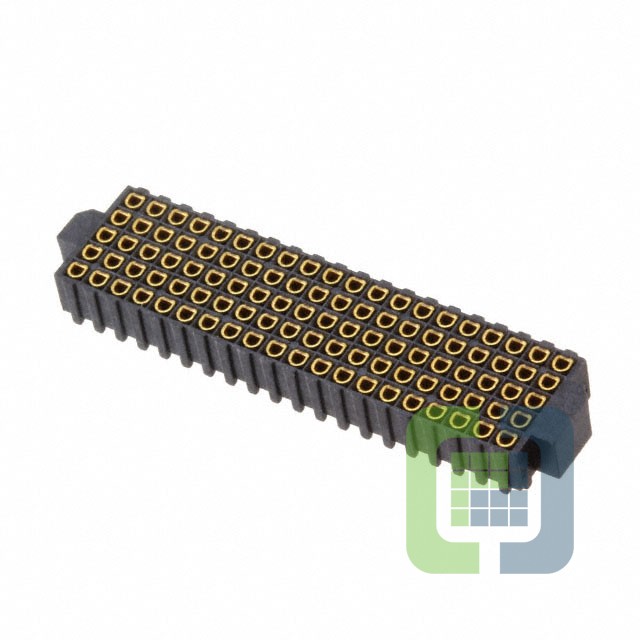

YFS-20-03-H-05-SB-K
Samtec, Inc.
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN ARRAY RCPT 100POS SMD GOLD
- CategoryRectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
- Datasheet YFS-20-03-H-05-SB-K Datasheet
-
ECAD Model
- Share
In Stock: 226
Can ship immediately
Pricing:
- 1$27.78
- 10$26.78583
- 25$25.79336
- 50$25.29713
- 100$24.80104
- 250$24.305
- 500$23.80899
Quote It
Technical Details
- Series:SamArray® YFS
- Package:Tray
- Part Status:Active
- Connector Type:Array, Female Sockets
- Number of Positions:100
- Pitch:0.050" (1.27mm)
- Number of Rows:5
- Mounting Type:Surface Mount
- Features:Pick and Place
- Contact Finish:Gold
- Contact Finish Thickness:30.0µin (0.76µm)
- Mated Stacking Heights:5mm, 7mm, 9mm, 12mm, 19mm, 25mm
- Height Above Board:0.134" (3.40mm)
