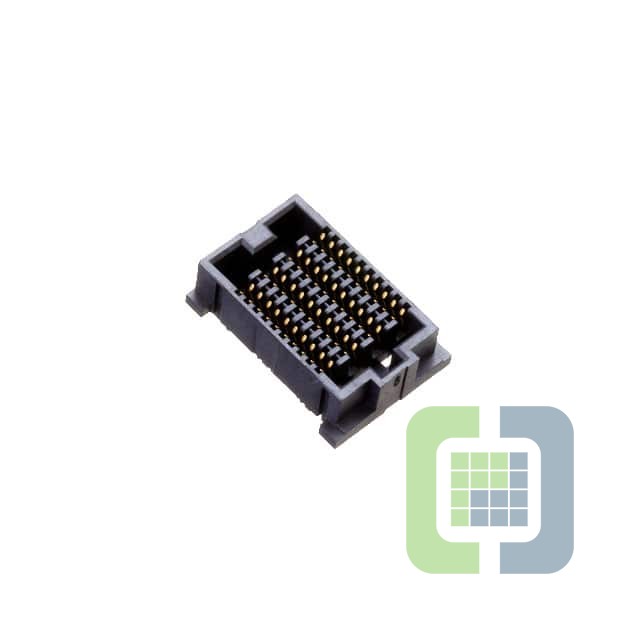

SEAF8-10-05.0-S-08-2-K
Samtec, Inc.
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN HD ARRAY RCPT 80P SMD GOLD
- CategoryRectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
- Datasheet SEAF8-10-05.0-S-08-2-K Datasheet
-
ECAD Model
- Share
In Stock: 281
Can ship immediately
Pricing:
- 1$16.64
- 10$15.65739
- 25$15.21723
- 50$14.18965
- 100$13.70022
- 250$12.72163
- 500$12.477
- 1,000$11.9877
Quote It
Technical Details
- Series:SEARAY™ SEAF
- Package:Strip
- Part Status:Active
- Connector Type:High Density Array, Female
- Number of Positions:80
- Pitch:0.031" (0.80mm)
- Number of Rows:8
- Mounting Type:Surface Mount
- Features:Board Guide, Pick and Place
- Contact Finish:Gold
- Contact Finish Thickness:30.0µin (0.76µm)
- Mated Stacking Heights:7mm, 10mm
- Height Above Board:0.180" (4.57mm)
