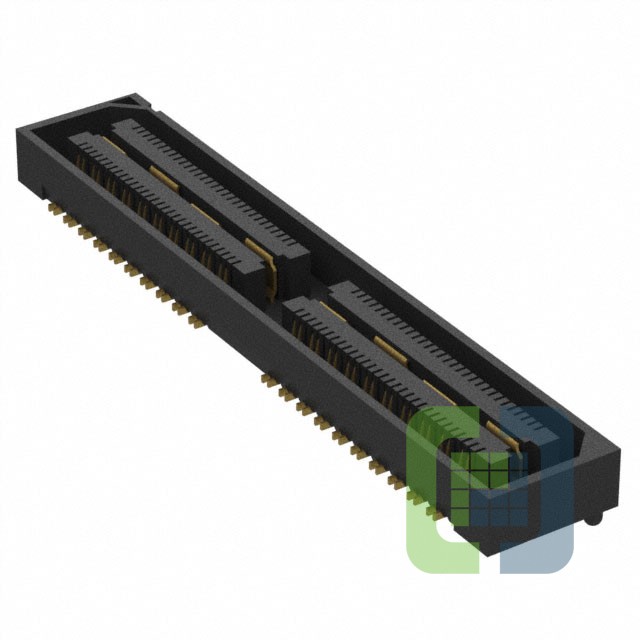

QSH-040-01-H-D-DP-A
Samtec, Inc.
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN DIFF ARRAY RCP 80P SMD GOLD
- CategoryRectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
- Datasheet QSH-040-01-H-D-DP-A Datasheet
-
ECAD Model
- Share
In Stock: 149
Can ship immediately
Pricing:
- 1$18.09
- 10$17.4808
- 25$16.87732
- 50$16.27471
- 100$15.6718
- 250$15.37041
- 500$15.06904
Quote It
Technical Details
- Series:Q Strip® QSH
- Package:Tray
- Part Status:Active
- Connector Type:Differential Pair Array, Female
- Number of Positions:80
- Pitch:0.020" (0.50mm)
- Number of Rows:2
- Mounting Type:Surface Mount
- Features:Board Guide, Ground Bus (Plane)
- Contact Finish:Gold
- Contact Finish Thickness:30.0µin (0.76µm)
- Mated Stacking Heights:5mm, 8mm, 11mm, 14mm, 16mm, 19mm, 25mm
- Height Above Board:0.128" (3.25mm)
