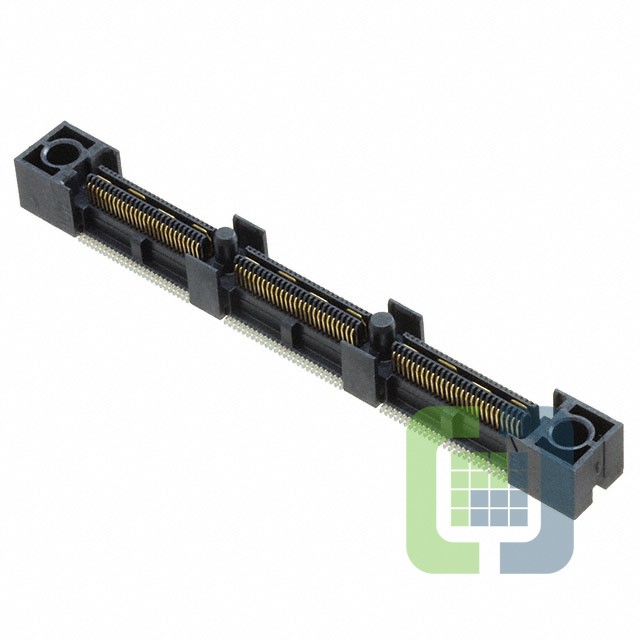

QFS-078-04.25-L-D-A-GP
Samtec, Inc.
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN RCPT 156POS SMD GOLD
- CategoryRectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
- Datasheet QFS-078-04.25-L-D-A-GP Datasheet
-
ECAD Model
- Share
In Stock: 152
Can ship immediately
Pricing:
- 1$19.49
- 10$18.79999
- 25$18.1033
- 50$17.75496
- 100$17.40675
- 250$17.05861
- 500$16.71048
Quote It
Technical Details
- Series:Power Q2™ QFS
- Package:Tray
- Part Status:Active
- Connector Type:Receptacle, Center Strip Contacts
- Number of Positions:156
- Pitch:0.025" (0.64mm)
- Number of Rows:2
- Mounting Type:Surface Mount
- Features:Board Guide, Ground Bus (Plane), Mating Guide
- Contact Finish:Gold
- Contact Finish Thickness:10.0µin (0.25µm)
- Mated Stacking Heights:10mm, 11mm, 14mm
- Height Above Board:0.278" (7.06mm)
