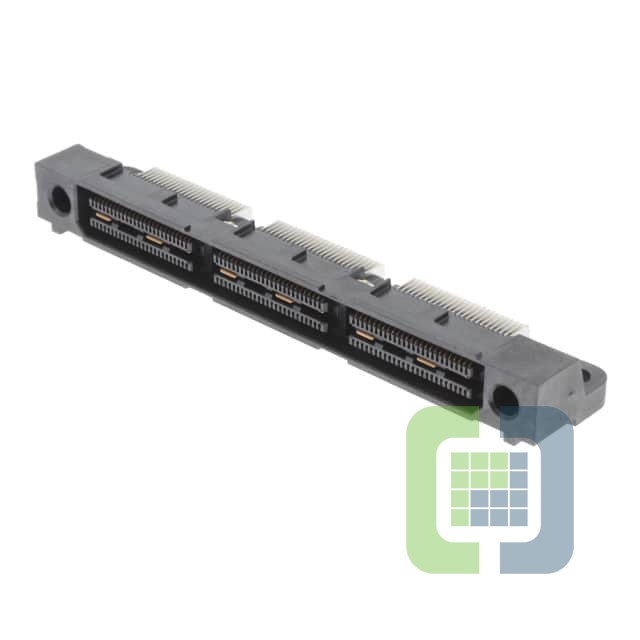

QSS-075-01-F-D-RA-WT
Samtec, Inc.
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN SOCKET 150POS R/A SMD GOLD
- CategoryRectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
- Datasheet QSS-075-01-F-D-RA-WT Datasheet
-
ECAD Model
- Share
In Stock: 250
Can ship immediately
Pricing:
- 1$20.87
- 10$20.12975
- 25$19.3842
- 50$19.01156
- 100$18.63866
- 250$18.26591
- 500$17.89312
Quote It
Technical Details
- Series:Q Strip® QSS
- Package:Tray
- Part Status:Active
- Connector Type:Socket, Center Strip Contacts
- Number of Positions:150
- Pitch:0.025" (0.64mm)
- Number of Rows:2
- Mounting Type:Surface Mount, Right Angle
- Features:Ground Bus (Plane), Solder Retention
- Contact Finish:Gold
- Contact Finish Thickness:3.00µin (0.076µm)
- Mated Stacking Heights:-
- Height Above Board:0.328" (8.33mm)
