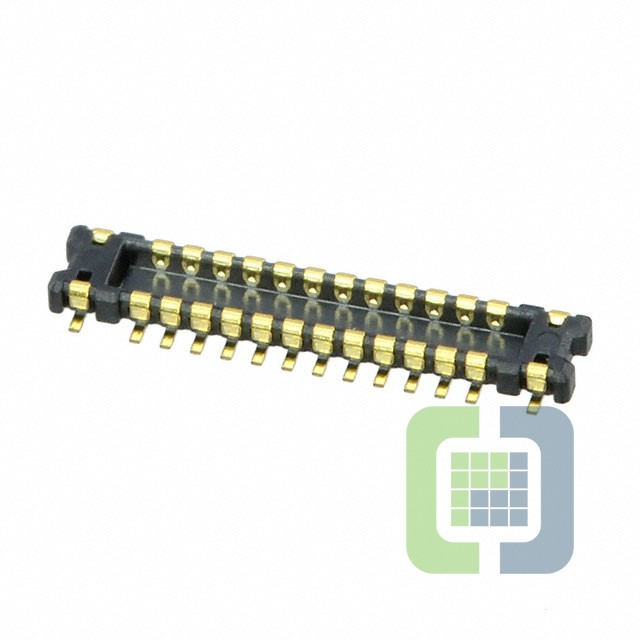

AXG224144A
Panasonic
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN HDR 24POS SMD GOLD
- CategoryRectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
- Datasheet AXG224144A Datasheet
-
ECAD Model
- Share
In Stock: 1,138
Can ship immediately
Pricing:
- 1$1.02
- 10$0.92416
- 25$0.86758
- 50$0.82986
- 100$0.79214
- 250$0.71669
- 500$0.66011
- 1,000$0.56581
- 2,500$0.52809
Quote It
Technical Details
- Series:S35
- Package:Strip
- Part Status:Active
- Connector Type:Header, Outer Shroud Contacts
- Number of Positions:24
- Pitch:0.014" (0.35mm)
- Number of Rows:2
- Mounting Type:Surface Mount
- Features:Solder Retention
- Contact Finish:Gold
- Contact Finish Thickness:-
- Mated Stacking Heights:0.6mm
- Height Above Board:0.018" (0.46mm)
