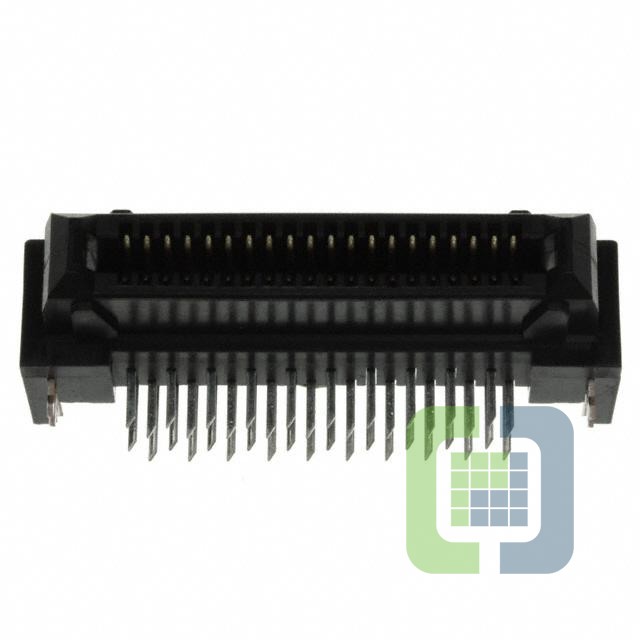

TX24-40R-LT-H1E
JAE Electronics
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN RCPT 40POS R/A GOLD
- CategoryRectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
- Datasheet TX24-40R-LT-H1E Datasheet
-
ECAD Model
- Share
In Stock: 192
Can ship immediately
Pricing:
- 1$2.13
- 10$1.93534
- 25$1.81685
- 50$1.73786
- 100$1.65886
- 250$1.50087
- 792$1.34287
- 1,584$1.1454
- 3,168$1.1059
Quote It
Technical Details
- Series:TX24
- Package:Tray
- Part Status:Active
- Connector Type:Receptacle, Outer Shroud Contacts
- Number of Positions:40
- Pitch:0.050" (1.27mm)
- Number of Rows:2
- Mounting Type:Through Hole, Right Angle
- Features:Board Lock
- Contact Finish:Gold
- Contact Finish Thickness:3.94µin (0.10µm)
- Mated Stacking Heights:-
- Height Above Board:0.354" (9.00mm)
