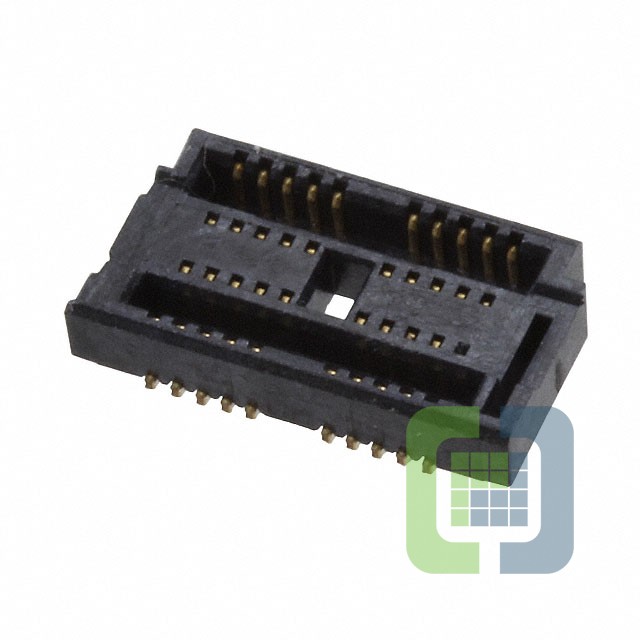

LTH-010-01-G-D-A
Samtec, Inc.
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN HDR 20POS SMD GOLD
- CategoryRectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
- Datasheet LTH-010-01-G-D-A Datasheet
-
ECAD Model
- Share
In Stock: 173
Can ship immediately
Pricing:
- 1$7.1
- 10$6.48699
- 25$6.17808
- 66$5.5602
- 132$4.9425
- 264$4.47908
- 528$4.17019
- 1,056$3.93852
- 2,508$3.78407
Quote It
Technical Details
- Series:LTH
- Package:Tube
- Part Status:Active
- Connector Type:Header, Outer Shroud Contacts
- Number of Positions:20
- Pitch:0.020" (0.50mm)
- Number of Rows:2
- Mounting Type:Surface Mount
- Features:Board Guide
- Contact Finish:Gold
- Contact Finish Thickness:10.0µin (0.25µm)
- Mated Stacking Heights:2.31mm
- Height Above Board:0.066" (1.68mm)
