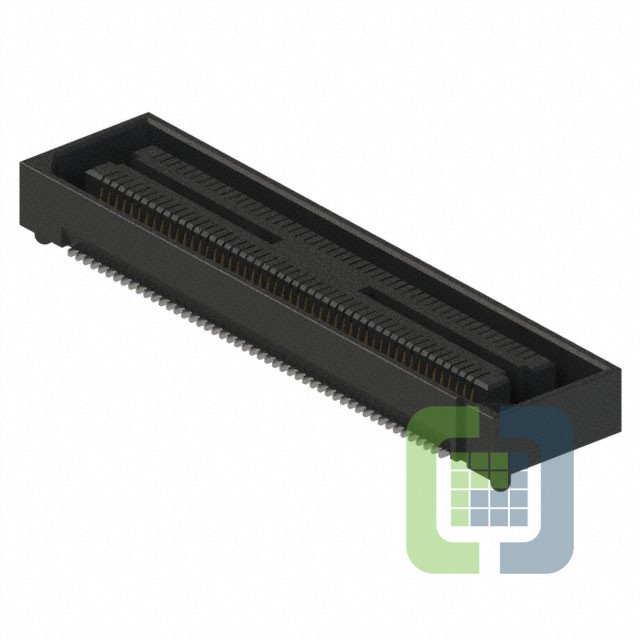

BSH-050-01-L-D-A
Samtec, Inc.
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN SOCKET 100POS SMD GOLD
- CategoryRectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
- Datasheet BSH-050-01-L-D-A Datasheet
-
ECAD Model
- Share
In Stock: 194
Can ship immediately
Pricing:
- 1$8.39
- 10$8.0384
- 100$6.64041
- 500$5.59192
- 1,000$4.89294
Quote It
Technical Details
- Series:BSH
- Package:Tray
- Part Status:Active
- Connector Type:Socket, Center Strip Contacts
- Number of Positions:100
- Pitch:0.020" (0.50mm)
- Number of Rows:2
- Mounting Type:Surface Mount
- Features:Board Guide
- Contact Finish:Gold
- Contact Finish Thickness:10.0µin (0.25µm)
- Mated Stacking Heights:5mm
- Height Above Board:0.128" (3.25mm)
