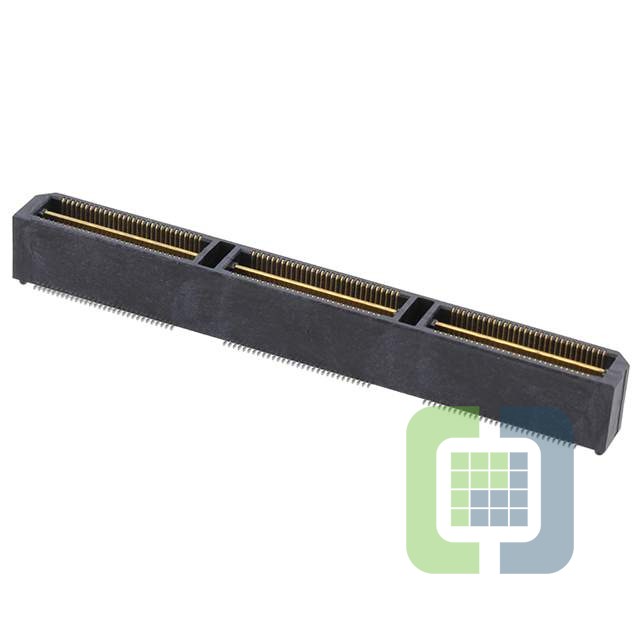

QTH-090-02-F-D-A
Samtec, Inc.
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN HDR 180POS SMD GOLD
- CategoryRectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
- Datasheet QTH-090-02-F-D-A Datasheet
-
ECAD Model
- Share
In Stock: 183
Can ship immediately
Pricing:
- 1$14.91
- 10$14.03419
- 25$13.63941
- 50$12.71861
- 100$12.27991
- 250$11.40278
- 500$11.18351
- 1,000$10.74493
Quote It
Technical Details
- Series:Q Strip® QTH
- Package:Tray
- Part Status:Active
- Connector Type:Header, Outer Shroud Contacts
- Number of Positions:180
- Pitch:0.020" (0.50mm)
- Number of Rows:2
- Mounting Type:Surface Mount
- Features:Board Guide, Ground Bus (Plane)
- Contact Finish:Gold
- Contact Finish Thickness:3.00µin (0.076µm)
- Mated Stacking Heights:8mm
- Height Above Board:0.286" (7.26mm)
