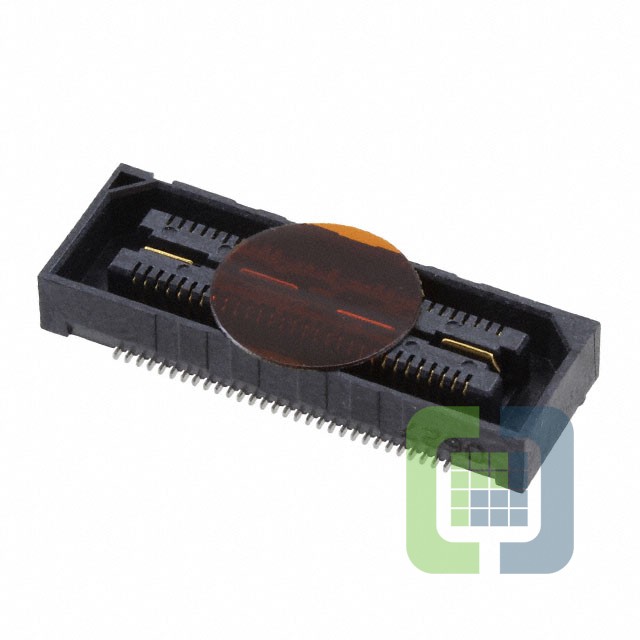

QSH-030-01-C-D-A-K
Samtec, Inc.
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN RCPT 60POS SMD GOLD
- CategoryRectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
- Datasheet QSH-030-01-C-D-A-K Datasheet
-
ECAD Model
- Share
In Stock: 206
Can ship immediately
Pricing:
- 1$16.18
- 10$15.64067
- 25$15.10133
- 96$14.56206
- 192$14.0227
- 288$13.75299
- 576$13.48333
- 1,056$12.944
Quote It
Technical Details
- Series:Q Strip® QSH
- Package:Tray
- Part Status:Active
- Connector Type:Receptacle, Center Strip Contacts
- Number of Positions:60
- Pitch:0.020" (0.50mm)
- Number of Rows:2
- Mounting Type:Surface Mount
- Features:Board Guide, Ground Bus (Plane), Pick and Place
- Contact Finish:Gold
- Contact Finish Thickness:50.0µin (1.27µm)
- Mated Stacking Heights:5mm, 8mm, 11mm, 14mm, 16mm, 19mm, 25mm
- Height Above Board:0.128" (3.25mm)
