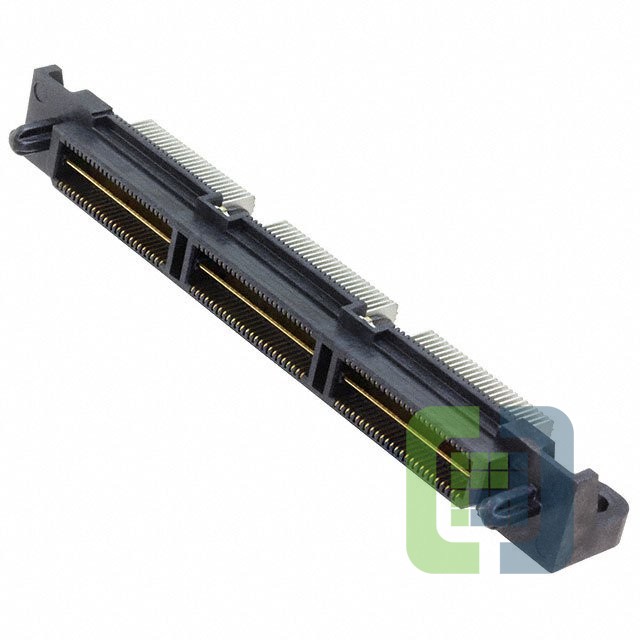

QTS-075-01-L-D-RA-WT
Samtec, Inc.
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN HDR 150POS R/A SMD GOLD
- CategoryRectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
- Datasheet QTS-075-01-L-D-RA-WT Datasheet
-
ECAD Model
- Share
In Stock: 249
Can ship immediately
Pricing:
- 1$19.58
- 12$18.8856
- 36$18.18643
- 60$17.83661
- 108$17.48688
- 252$17.13712
- 504$16.7874
Quote It
Technical Details
- Series:Q Strip® QTS
- Package:Tray
- Part Status:Active
- Connector Type:Header, Outer Shroud Contacts
- Number of Positions:150
- Pitch:0.025" (0.64mm)
- Number of Rows:2
- Mounting Type:Surface Mount, Right Angle
- Features:Ground Bus (Plane), Solder Retention
- Contact Finish:Gold
- Contact Finish Thickness:10.0µin (0.25µm)
- Mated Stacking Heights:-
- Height Above Board:0.371" (9.42mm)
