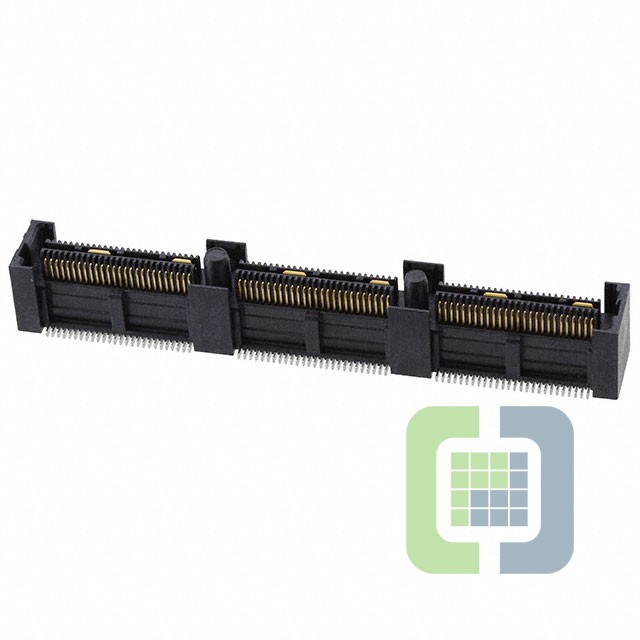

QFS-078-06.25-SL-D-A
Samtec, Inc.
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN RCPT 156POS SMD GOLD
- CategoryRectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
-
ECAD Model
- Share
In Stock: 144
Can ship immediately
Pricing:
- 1$20.57
- 10$19.83337
- 33$19.09801
- 66$18.73096
- 132$18.36359
- 264$17.99634
- 528$17.62905
Quote It
Technical Details
- Series:Power Q2™ QFS
- Package:Tray
- Part Status:Active
- Connector Type:Receptacle, Center Strip Contacts
- Number of Positions:156
- Pitch:0.025" (0.64mm)
- Number of Rows:2
- Mounting Type:Surface Mount
- Features:Board Guide, Ground Bus (Plane)
- Contact Finish:Gold
- Contact Finish Thickness:10.0µin (0.25µm)
- Mated Stacking Heights:12mm, 13mm, 16mm
- Height Above Board:0.356" (9.04mm)
