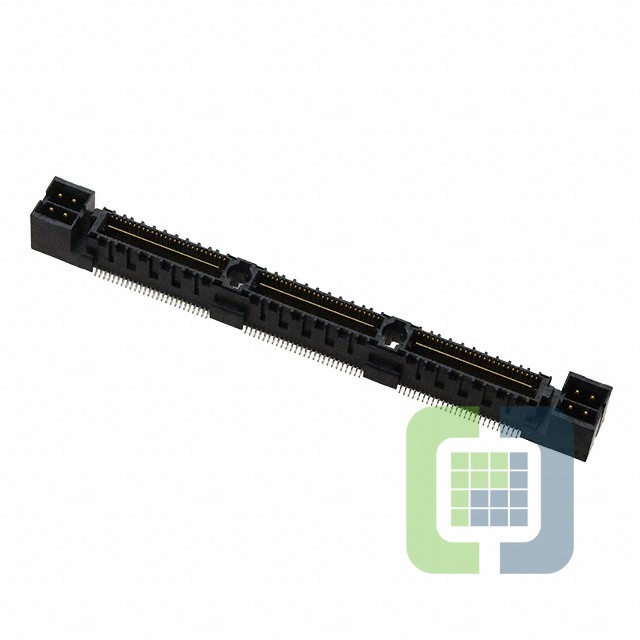

QMS-078-06.75-L-D-PC4
Samtec, Inc.
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN HDR 156POS SMD GOLD
- CategoryRectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
- Datasheet QMS-078-06.75-L-D-PC4 Datasheet
-
ECAD Model
- Share
In Stock: 188
Can ship immediately
Pricing:
- 1$21.41
- 10$20.64536
- 25$19.88071
- 50$19.49839
- 100$19.11607
- 250$18.73375
- 500$18.35143
Quote It
Technical Details
- Series:Power Q2™ QMS
- Package:Tray
- Part Status:Active
- Connector Type:Header, Outer Shroud Contacts
- Number of Positions:156
- Pitch:0.025" (0.64mm)
- Number of Rows:2
- Mounting Type:Surface Mount, Through Hole
- Features:Board Guide, Ground Bus (Plane), Power Pins (8)
- Contact Finish:Gold
- Contact Finish Thickness:10.0µin (0.25µm)
- Mated Stacking Heights:11mm, 13mm
- Height Above Board:0.265" (6.73mm)
