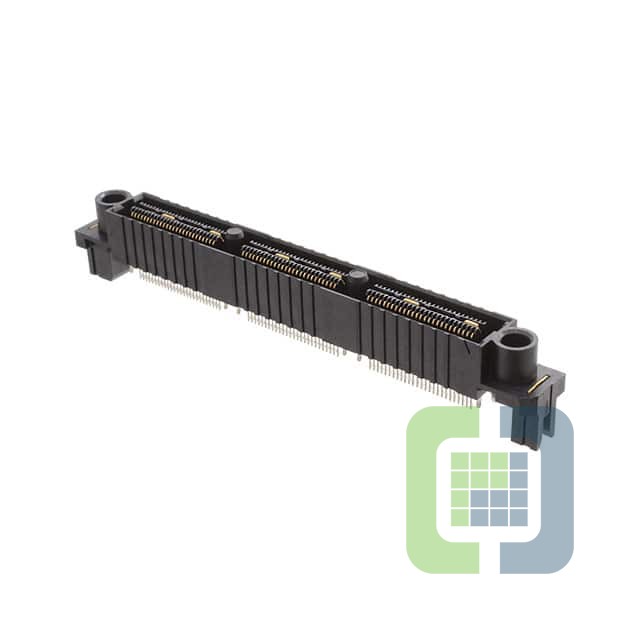

QFS-078-01-SL-D-EM2
Samtec, Inc.
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN RCPT 156POS EDGE MNT GOLD
- CategoryRectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
- Datasheet QFS-078-01-SL-D-EM2 Datasheet
-
ECAD Model
- Share
In Stock: 248
Can ship immediately
Pricing:
- 1$22.85
- 10$22.02857
- 25$21.2127
- 50$20.8049
- 100$20.39682
- 250$19.98891
- 500$19.58095
Quote It
Technical Details
- Series:Power Q2™ QFS
- Package:Tray
- Part Status:Active
- Connector Type:Receptacle, Center Strip Contacts
- Number of Positions:156
- Pitch:0.025" (0.64mm)
- Number of Rows:2
- Mounting Type:Board Edge, Straddle Mount
- Features:Ground Bus (Plane)
- Contact Finish:Gold
- Contact Finish Thickness:-
- Mated Stacking Heights:-
- Height Above Board:-
