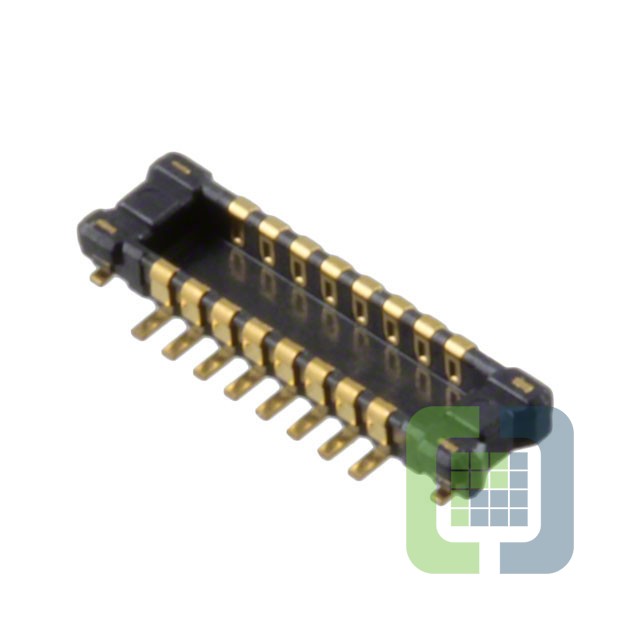

AXE616124A
Panasonic
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN HDR 16POS SMD GOLD
- CategoryRectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
- Datasheet AXE616124A Datasheet
-
ECAD Model
- Share
In Stock: 602
Can ship immediately
Pricing:
- 1$2.08
- 10$1.887
- 25$1.7712
- 50$1.694
- 100$1.617
- 250$1.463
- 500$1.3475
- 1,000$1.155
- 2,500$1.078
Quote It
Technical Details
- Series:A4S
- Package:Strip
- Part Status:Active
- Connector Type:Header, Outer Shroud Contacts
- Number of Positions:16
- Pitch:0.016" (0.40mm)
- Number of Rows:2
- Mounting Type:Surface Mount
- Features:Solder Retention
- Contact Finish:Gold
- Contact Finish Thickness:-
- Mated Stacking Heights:0.8mm, 1mm
- Height Above Board:0.026" (0.65mm)
