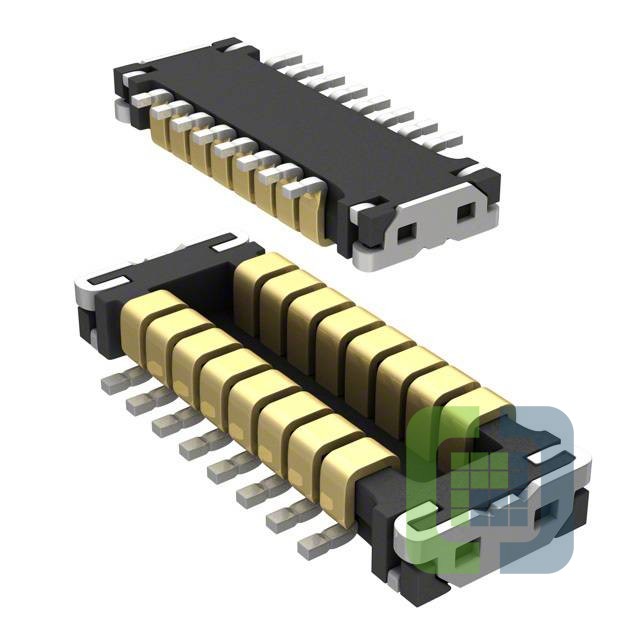

5035521680
Woodhead - Molex
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN PLUG 16POS SMD GOLD
- CategoryRectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
- Datasheet 5035521680 Datasheet
-
ECAD Model
- Share
In Stock: 1,604
Can ship immediately
Pricing:
- 1$1.36
- 750$0.82251
- 1,500$0.705
- 3,750$0.6815
- 5,250$0.658
Quote It
Technical Details
- Series:SlimStack 503552
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Connector Type:Plug, Outer Shroud Contacts
- Number of Positions:16
- Pitch:0.016" (0.40mm)
- Number of Rows:2
- Mounting Type:Surface Mount
- Features:Solder Retention
- Contact Finish:Gold
- Contact Finish Thickness:-
- Mated Stacking Heights:0.7mm
- Height Above Board:0.022" (0.57mm)
