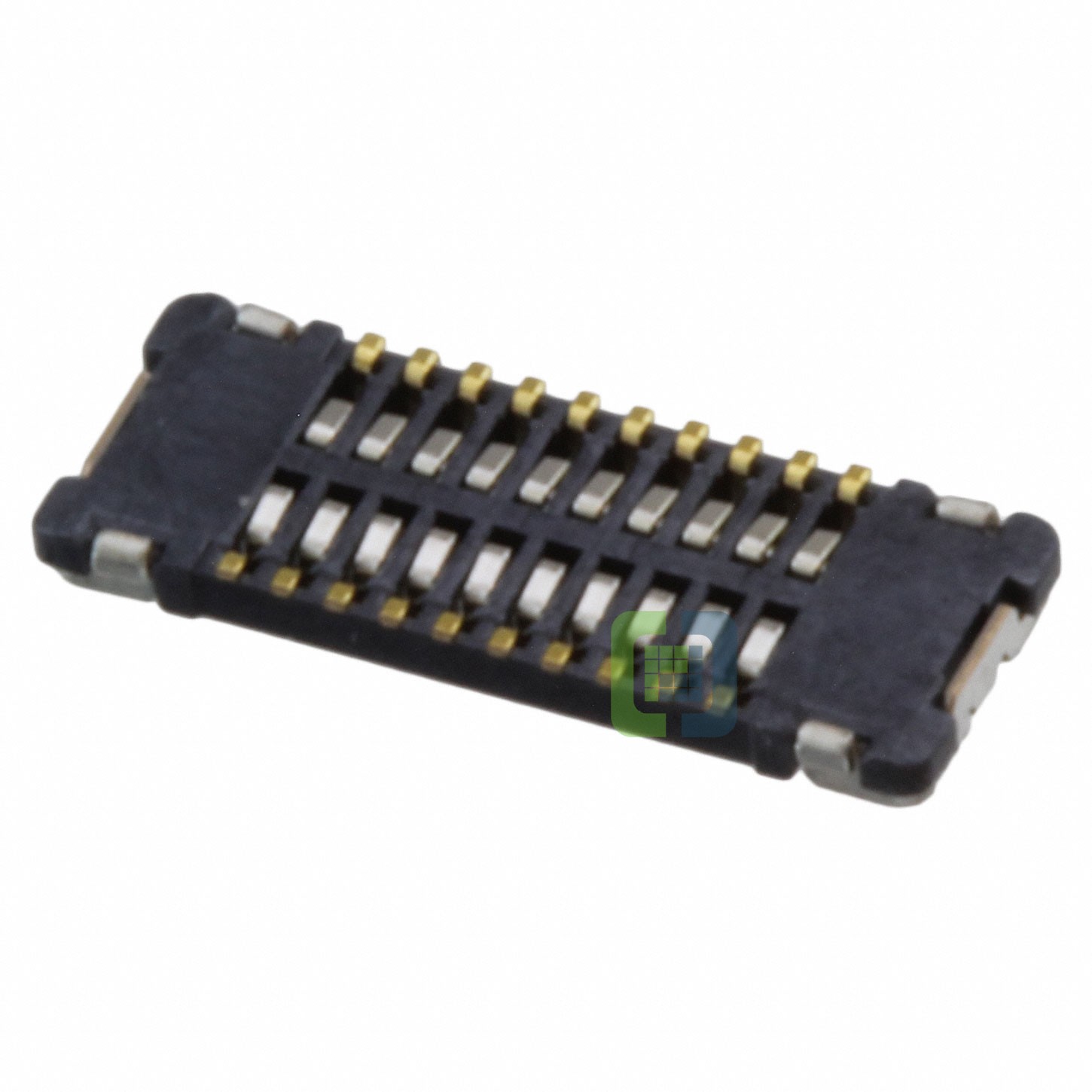

WP7A-S020VA1-R500
JAE Electronics
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN RCPT 20POS SMD GOLD
- CategoryRectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
- Datasheet WP7A-S020VA1-R500 Datasheet
-
ECAD Model
- Share
In Stock: 453
Can ship immediately
Pricing:
- 1$1.38
- 500$0.7776
- 1,000$0.6912
- 1,500$0.648
- 2,500$0.6264
- 5,000$0.6048
- 12,500$0.5616
Quote It
Technical Details
- Series:WP7
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Discontinued at Digi-Key
- Connector Type:Receptacle, Center Strip Contacts
- Number of Positions:20
- Pitch:0.016" (0.40mm)
- Number of Rows:2
- Mounting Type:Surface Mount
- Features:Solder Retention
- Contact Finish:Gold
- Contact Finish Thickness:3.94µin (0.10µm)
- Mated Stacking Heights:0.7mm
- Height Above Board:0.028" (0.71mm)
