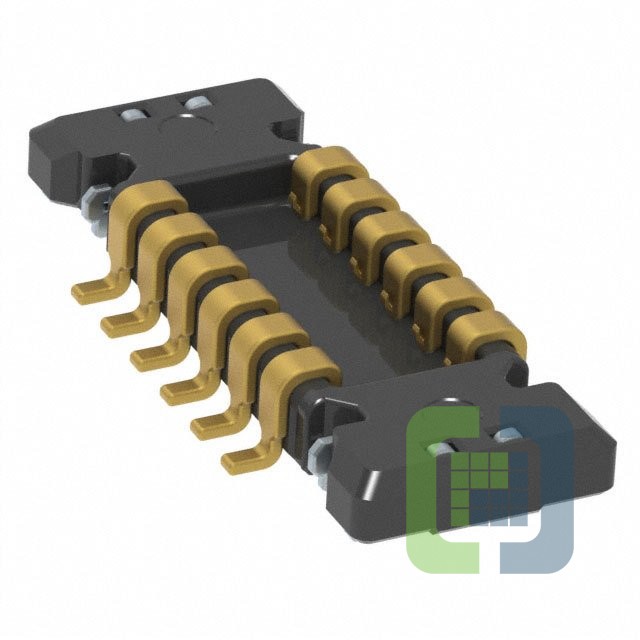

AXG8120J4A
Panasonic
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN PLUG 12POS SMD GOLD
- CategoryRectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
- Datasheet AXG8120J4A Datasheet
-
ECAD Model
- Share
In Stock: 908
Can ship immediately
Pricing:
- 1$2.24
- 10$2.034
- 25$1.9092
- 50$1.826
- 100$1.743
- 250$1.577
- 500$1.4525
- 1,000$1.245
- 2,500$1.162
Quote It
Technical Details
- Series:A35US
- Package:Strip
- Part Status:Obsolete
- Connector Type:Plug, Outer Shroud Contacts
- Number of Positions:14 (12 + 2 Power)
- Pitch:0.014" (0.35mm)
- Number of Rows:2
- Mounting Type:Surface Mount
- Features:Solder Retention
- Contact Finish:Gold
- Contact Finish Thickness:-
- Mated Stacking Heights:0.6mm
- Height Above Board:0.018" (0.46mm)
