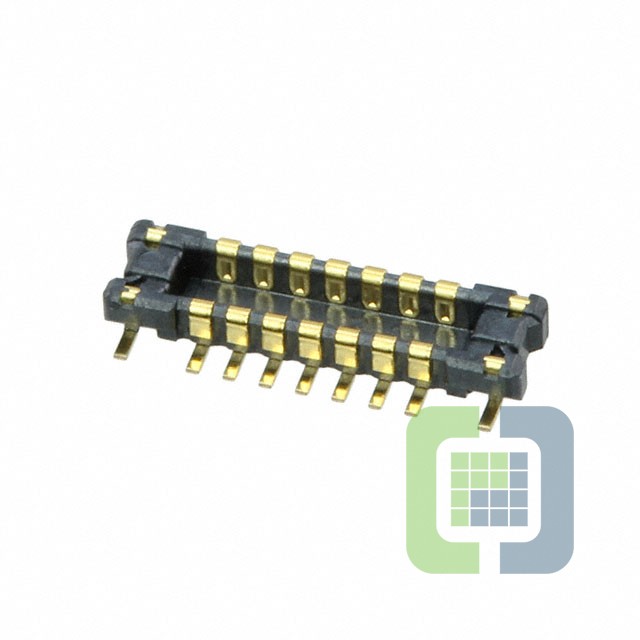

AXE214124A
Panasonic
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN HDR 14POS SMD GOLD
- CategoryRectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
- Datasheet AXE214124A Datasheet
-
ECAD Model
- Share
In Stock: 643
Can ship immediately
Pricing:
- 1$2.27
- 10$2.058
- 25$1.932
- 50$1.848
- 100$1.764
- 250$1.596
- 500$1.47
- 1,000$1.26
- 2,500$1.176
Quote It
Technical Details
- Series:A4US
- Package:Strip
- Part Status:Obsolete
- Connector Type:Header, Outer Shroud Contacts
- Number of Positions:14
- Pitch:0.016" (0.40mm)
- Number of Rows:2
- Mounting Type:Surface Mount
- Features:Solder Retention
- Contact Finish:Gold
- Contact Finish Thickness:-
- Mated Stacking Heights:0.8mm
- Height Above Board:0.026" (0.65mm)
