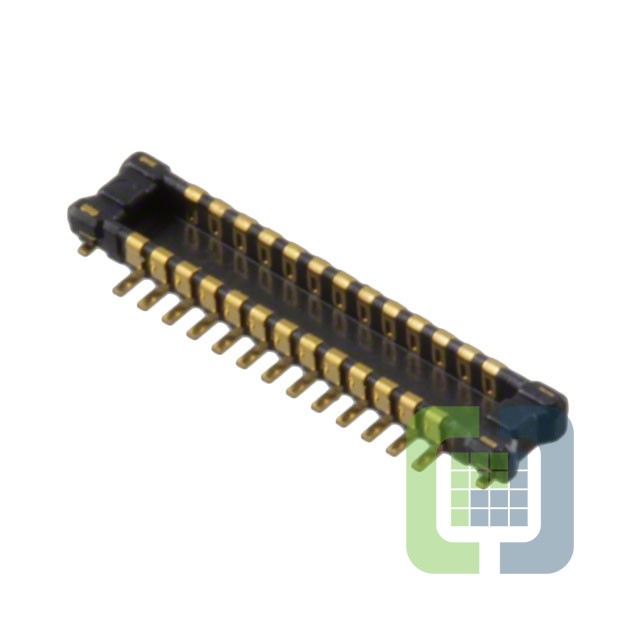

AXE626124
Panasonic
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN HDR 26POS SMD GOLD
- CategoryRectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
- Datasheet AXE626124 Datasheet
-
ECAD Model
- Share
In Stock: 713
Can ship immediately
Pricing:
- 1$2.32
- 1,000$1.29
- 2,000$1.247
- 3,000$1.204
- 5,000$1.1438
Quote It
Technical Details
- Series:A4S
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Not For New Designs
- Connector Type:Header, Outer Shroud Contacts
- Number of Positions:26
- Pitch:0.016" (0.40mm)
- Number of Rows:2
- Mounting Type:Surface Mount
- Features:Solder Retention
- Contact Finish:Gold
- Contact Finish Thickness:-
- Mated Stacking Heights:0.8mm
- Height Above Board:0.026" (0.65mm)
