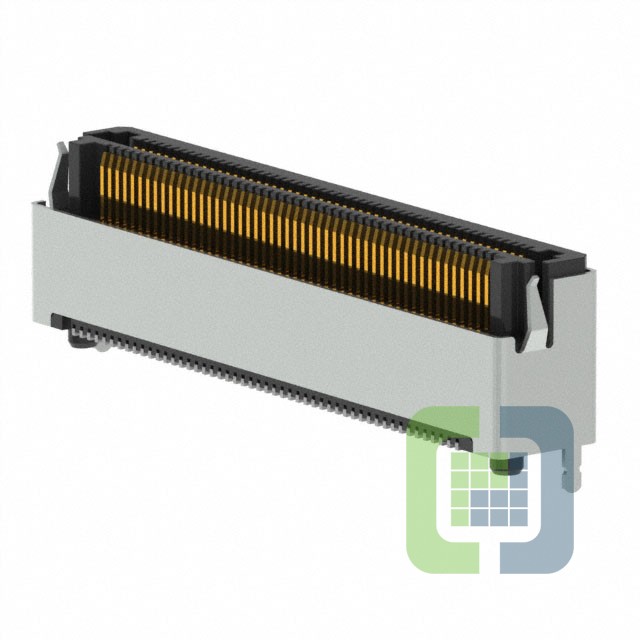

LSHM-150-06.0-L-DV-A-S-TR
Samtec, Inc.
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN SELF-MATE 100POS SMD GOLD
- CategoryRectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
- Datasheet LSHM-150-06.0-L-DV-A-S-TR Datasheet
-
ECAD Model
- Share
In Stock: 213
Can ship immediately
Pricing:
- 1$11.13
- 275$6.534
- 550$6.292
- 825$6.17101
- 1,375$6.05
Quote It
Technical Details
- Series:Razor Beam™ LSHM
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Connector Type:Self Mating, Non-Gendered
- Number of Positions:100
- Pitch:0.020" (0.50mm)
- Number of Rows:2
- Mounting Type:Surface Mount
- Features:Board Guide, Shielded
- Contact Finish:Gold
- Contact Finish Thickness:10.0µin (0.25µm)
- Mated Stacking Heights:8.5mm, 9mm, 10mm, 12mm
- Height Above Board:0.293" (7.45mm)
