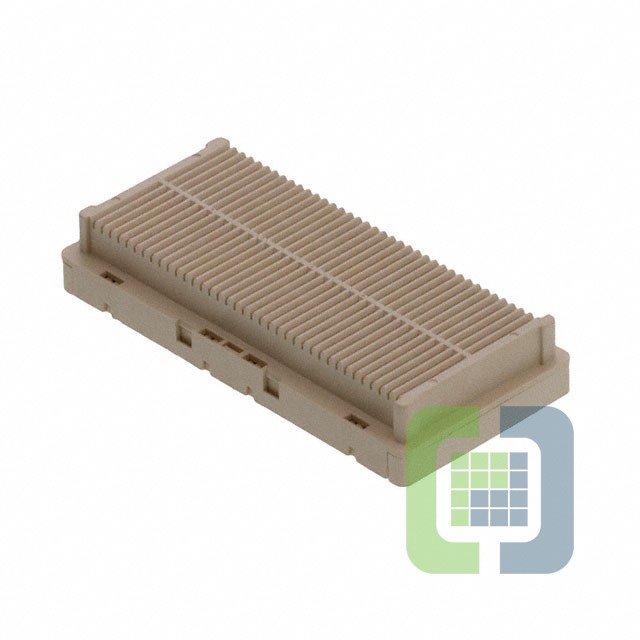

1761617-5
TE Connectivity AMP Connectors
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN DIFF ARRAY RCPT 296POS SMD
- CategoryRectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
- Datasheet 1761617-5 Datasheet
-
ECAD Model
- Share
In Stock: 215
Can ship immediately
Pricing:
- 1$49.62
- 20$46.704
- 40$45.2445
- 60$42.3255
- 100$39.9903
Quote It
Technical Details
- Series:STEP-Z
- Package:Tray
- Part Status:Obsolete
- Connector Type:Differential Pair Array, Female
- Number of Positions:296 Signal (148 Pair)
- Pitch:0.051" (1.30mm)
- Number of Rows:18
- Mounting Type:Surface Mount
- Features:-
- Contact Finish:Gold
- Contact Finish Thickness:30.0µin (0.76µm)
- Mated Stacking Heights:15mm, 17mm, 18mm, 20mm, 25mm, 30mm
- Height Above Board:0.419" (10.64mm)
