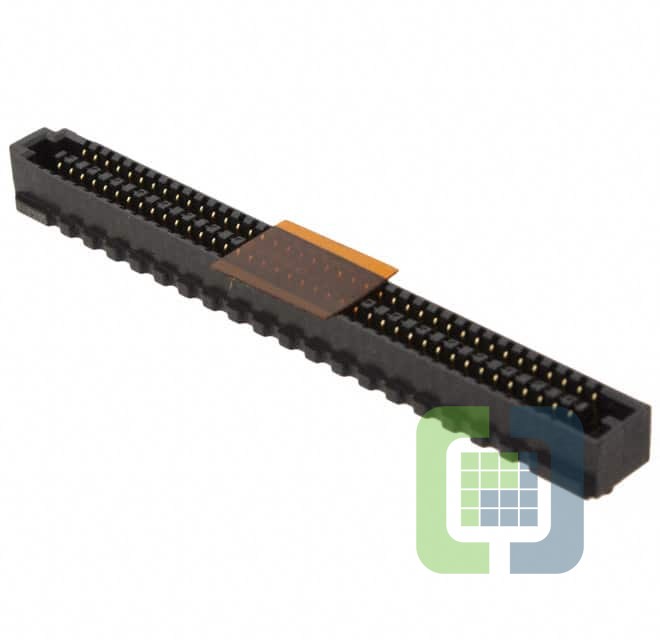

0465574145
Woodhead - Molex
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN HD ARRAY RCPT 160P SMD GOLD
- CategoryRectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
- Datasheet 0465574145 Datasheet
-
ECAD Model
- Share
In Stock: 184
Can ship immediately
Pricing:
- 1$20.64
- 350$12.992
- 700$12.7136
Quote It
Technical Details
- Series:SEARAY 46557
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Connector Type:High Density Array, Female
- Number of Positions:160
- Pitch:0.050" (1.27mm)
- Number of Rows:4
- Mounting Type:Surface Mount
- Features:Board Guide
- Contact Finish:Gold
- Contact Finish Thickness:30.0µin (0.76µm)
- Mated Stacking Heights:7mm, 7.5mm, 8mm, 8.5mm, 9.5mm, 10mm, 12mm
- Height Above Board:0.199" (5.05mm)
