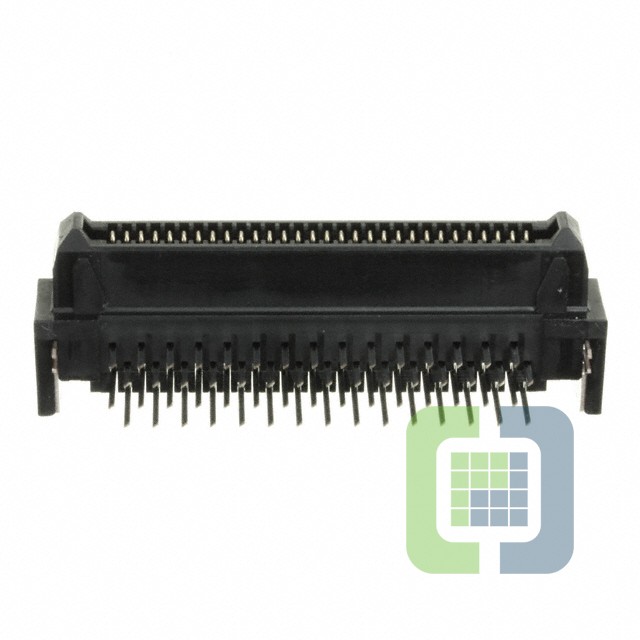

TX24-60R-LT-H1E
JAE Electronics
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN RCPT 60POS R/A GOLD
- CategoryRectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
- Datasheet TX24-60R-LT-H1E Datasheet
-
ECAD Model
- Share
In Stock: 1,692
Can ship immediately
Pricing:
- 1$2.02
- 10$1.83113
- 25$1.71902
- 50$1.64428
- 100$1.56954
- 250$1.42006
- 528$1.30795
- 1,056$1.1211
- 2,640$1.04636
Quote It
Technical Details
- Series:TX24
- Package:Tray
- Part Status:Active
- Connector Type:Receptacle, Outer Shroud Contacts
- Number of Positions:60
- Pitch:0.050" (1.27mm)
- Number of Rows:2
- Mounting Type:Through Hole, Right Angle
- Features:Board Lock
- Contact Finish:Gold
- Contact Finish Thickness:3.94µin (0.10µm)
- Mated Stacking Heights:-
- Height Above Board:0.354" (9.00mm)
