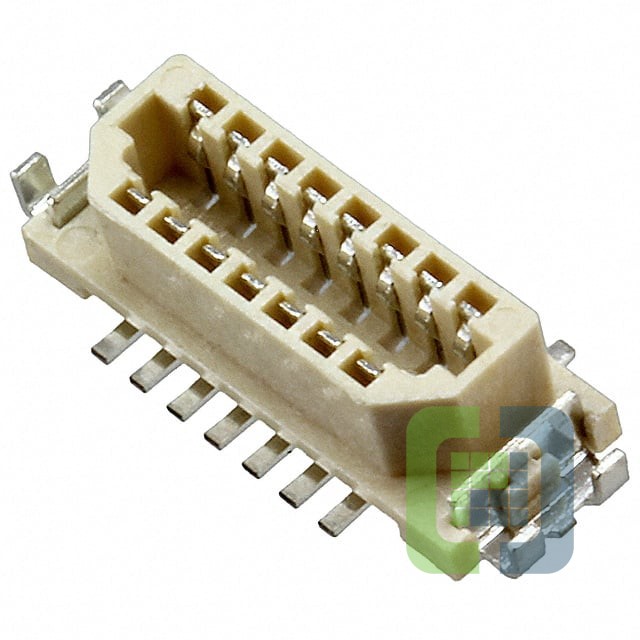

M40-6201546
Harwin
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN RCPT 15POS SMD TIN
- CategoryRectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
- Datasheet M40-6201546 Datasheet
-
ECAD Model
- Share
In Stock: 166
Can ship immediately
Pricing:
- 1$2.6
- 10$2.35766
- 44$2.21379
- 88$2.11746
- 132$2.02121
- 264$1.82873
- 528$1.68435
- 1,012$1.44374
- 2,508$1.34749
Quote It
Technical Details
- Series:M40
- Package:Tube
- Part Status:Active
- Connector Type:Receptacle, Outer Shroud Contacts
- Number of Positions:15
- Pitch:0.039" (1.00mm)
- Number of Rows:2
- Mounting Type:Surface Mount
- Features:Board Guide, Solder Retention
- Contact Finish:Tin
- Contact Finish Thickness:80.0µin (2.03µm)
- Mated Stacking Heights:4.3mm
- Height Above Board:0.130" (3.30mm)
