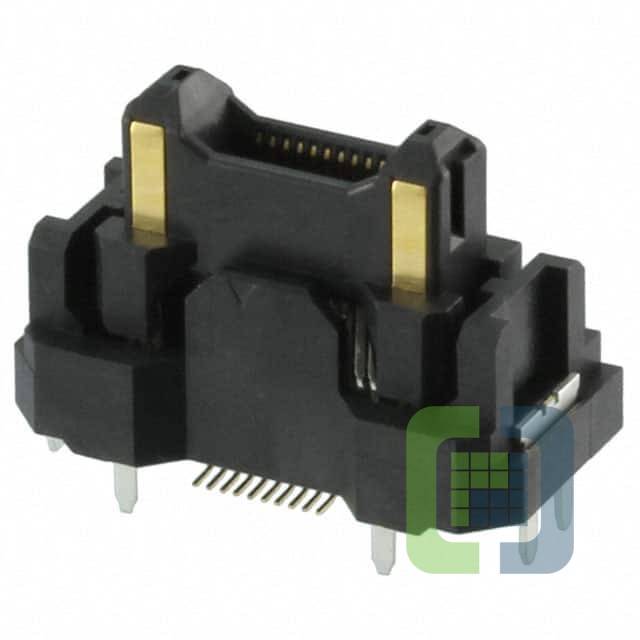

FX23-20P-0.5SV15
Hirose
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN HDR 20POS SMD GOLD
- CategoryRectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
- Datasheet FX23-20P-0.5SV15 Datasheet
-
ECAD Model
- Share
In Stock: 166
Can ship immediately
Pricing:
- 1$3.56
- 10$3.4176
- 25$3.1328
- 84$2.99045
- 168$2.848
- 252$2.492
Quote It
Technical Details
- Series:FunctionMax™ FX23
- Package:Tray
- Part Status:Active
- Connector Type:Header, Outer Shroud Contacts
- Number of Positions:24 (20 + 4 Power)
- Pitch:0.020" (0.50mm)
- Number of Rows:2
- Mounting Type:Surface Mount
- Features:Board Guide
- Contact Finish:Gold
- Contact Finish Thickness:3.94µin (0.10µm)
- Mated Stacking Heights:15mm, 20mm
- Height Above Board:0.507" (12.88mm)
