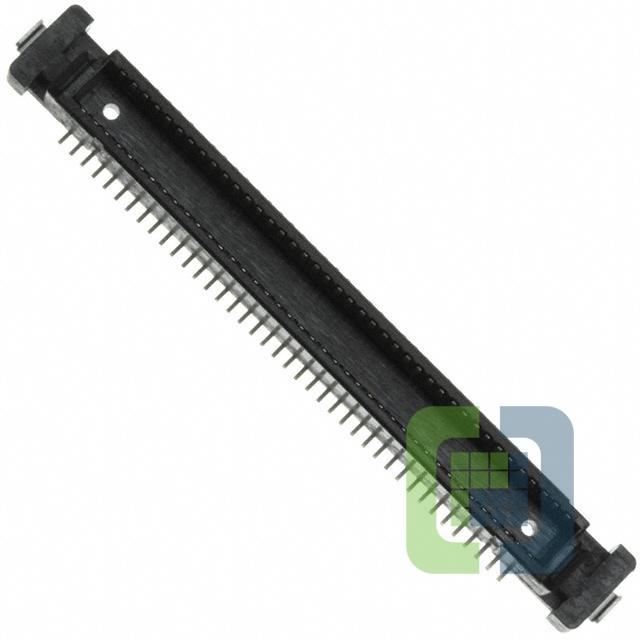

KX15-80K3DE
JAE Electronics
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN PLUG 80POS SMD GOLD
- CategoryRectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
- Datasheet KX15-80K3DE Datasheet
-
ECAD Model
- Share
In Stock: 166
Can ship immediately
Pricing:
- 1$6.33
- 10$6.07013
- 25$5.54249
- 50$5.27837
- 100$5.01445
- 250$4.48662
- 500$4.2227
- 1,000$3.69486
- 2,500$3.51012
Quote It
Technical Details
- Series:KX15
- Package:Tray
- Part Status:Active
- Connector Type:Plug, Center Strip Contacts
- Number of Positions:80
- Pitch:0.031" (0.80mm)
- Number of Rows:2
- Mounting Type:Surface Mount
- Features:Board Guide, Solder Retention
- Contact Finish:Gold
- Contact Finish Thickness:3.94µin (0.10µm)
- Mated Stacking Heights:5mm, 8mm, 11mm, 14mm, 17mm
- Height Above Board:0.187" (4.75mm)
