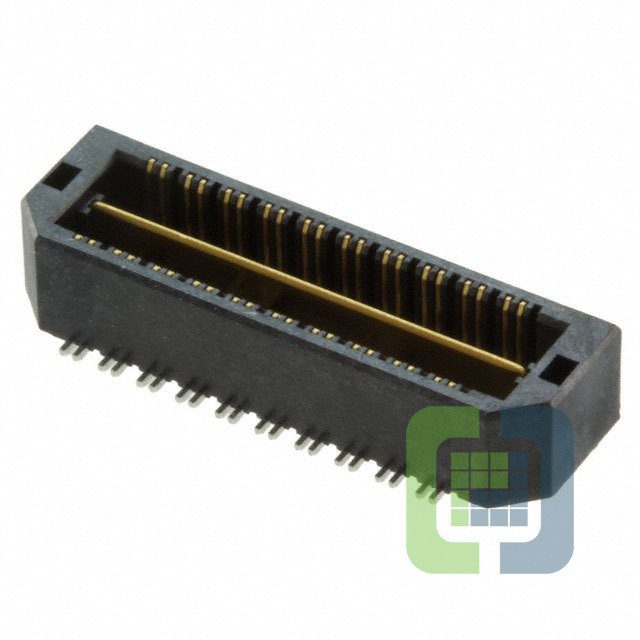

QTH-020-01-F-D-DP-A-K
Samtec, Inc.
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN DIFF ARRAY PLG 40P SMD GOLD
- CategoryRectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
- Datasheet QTH-020-01-F-D-DP-A-K Datasheet
-
ECAD Model
- Share
In Stock: 175
Can ship immediately
Pricing:
- 1$8.97
- 10$8.58195
- 100$7.21664
- 500$6.04637
- 1,000$5.34421
Quote It
Technical Details
- Series:Q Strip® QTH
- Package:Tray
- Part Status:Active
- Connector Type:Differential Pair Array, Male
- Number of Positions:40
- Pitch:0.020" (0.50mm)
- Number of Rows:2
- Mounting Type:Surface Mount
- Features:Board Guide, Ground Bus (Plane), Pick and Place
- Contact Finish:Gold
- Contact Finish Thickness:3.00µin (0.076µm)
- Mated Stacking Heights:5mm
- Height Above Board:0.160" (4.06mm)
