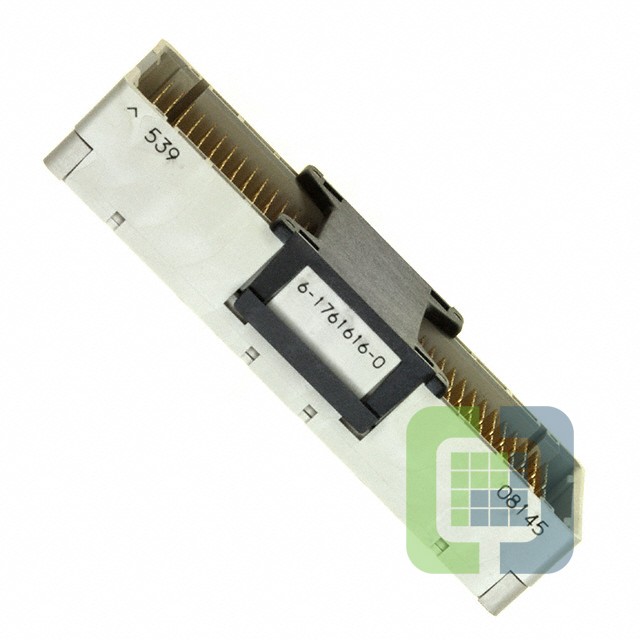

6-1761616-0
TE Connectivity AMP Connectors
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN DIFF ARRAY PLUG 296POS SMD
- CategoryRectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
- Datasheet 6-1761616-0 Datasheet
-
ECAD Model
- Share
In Stock: 116
Can ship immediately
Pricing:
- 1$36.36562
- 100$36.36562
Quote It
Technical Details
- Series:STEP-Z
- Package:Tray
- Part Status:Active
- Connector Type:Differential Pair Array, Male
- Number of Positions:296 Signal (148 Pair)
- Pitch:0.051" (1.30mm)
- Number of Rows:18
- Mounting Type:Surface Mount
- Features:-
- Contact Finish:Gold
- Contact Finish Thickness:30.0µin (0.76µm)
- Mated Stacking Heights:15mm, 21mm, 25mm
- Height Above Board:0.431" (10.95mm)
