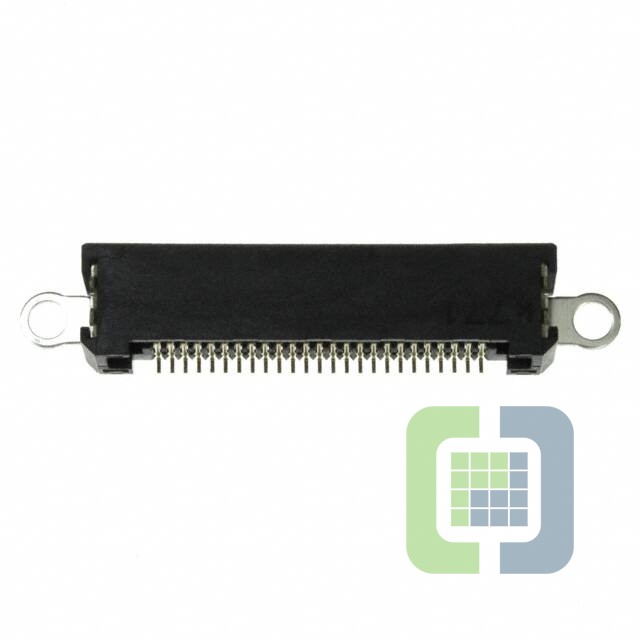

PM1M050H1AE
JAE Electronics
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN PLUG 50POS R/A SMD GOLD
- CategoryRectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
- Datasheet PM1M050H1AE Datasheet
-
ECAD Model
- Share
In Stock: 116
Can ship immediately
Pricing:
Call for price or sumbit a RFQ
Quote It
Technical Details
- Series:PM1
- Package:Tray
- Part Status:Obsolete
- Connector Type:Plug, Center Strip Contacts
- Number of Positions:50
- Pitch:0.031" (0.80mm)
- Number of Rows:2
- Mounting Type:Surface Mount, Right Angle
- Features:Board Guide
- Contact Finish:Gold
- Contact Finish Thickness:3.94µin (0.10µm)
- Mated Stacking Heights:-
- Height Above Board:0.210" (5.33mm)
