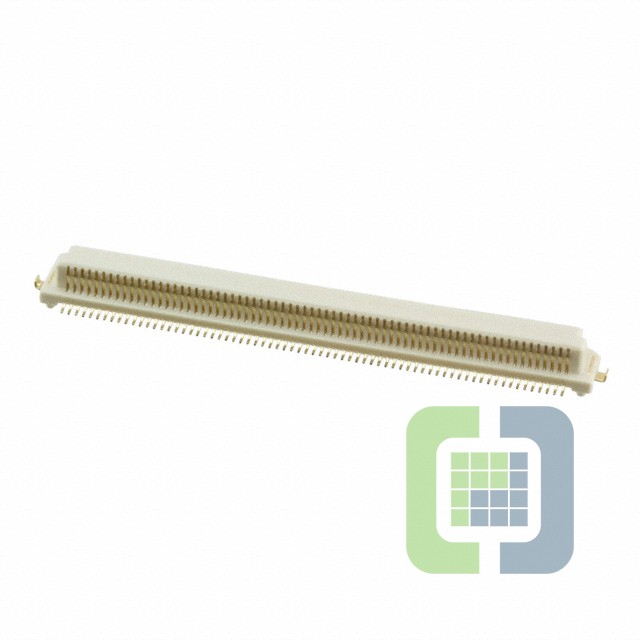

PK5-140P-CLT-2-GGF
3M
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN PLUG 140POS SMD GOLD
- CategoryRectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
- Datasheet PK5-140P-CLT-2-GGF Datasheet
-
ECAD Model
- Share
In Stock: 105
Can ship immediately
Pricing:
Call for price or sumbit a RFQ
Quote It
Technical Details
- Series:Pak 5, PK5
- Package:Tape & Reel (TR)
- Part Status:Obsolete
- Connector Type:Plug, Center Strip Contacts
- Number of Positions:140
- Pitch:0.020" (0.50mm)
- Number of Rows:2
- Mounting Type:Surface Mount
- Features:Board Guide, Solder Retention
- Contact Finish:Gold
- Contact Finish Thickness:2.00µin (0.051µm)
- Mated Stacking Heights:4mm, 5mm, 6mm
- Height Above Board:0.119" (3.02mm)
